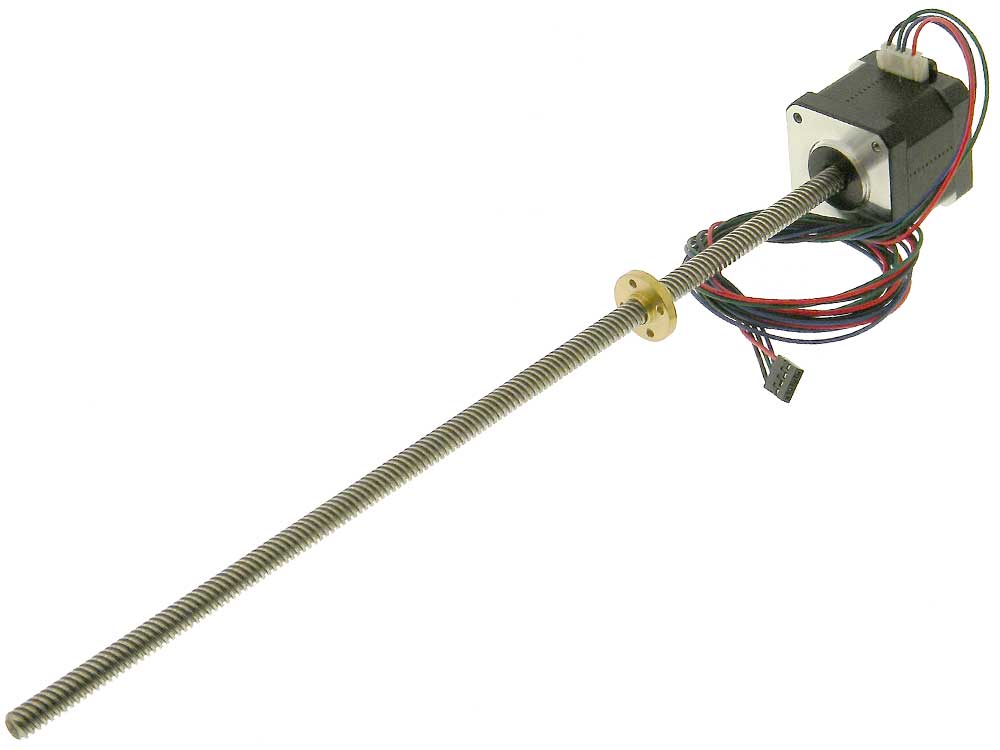

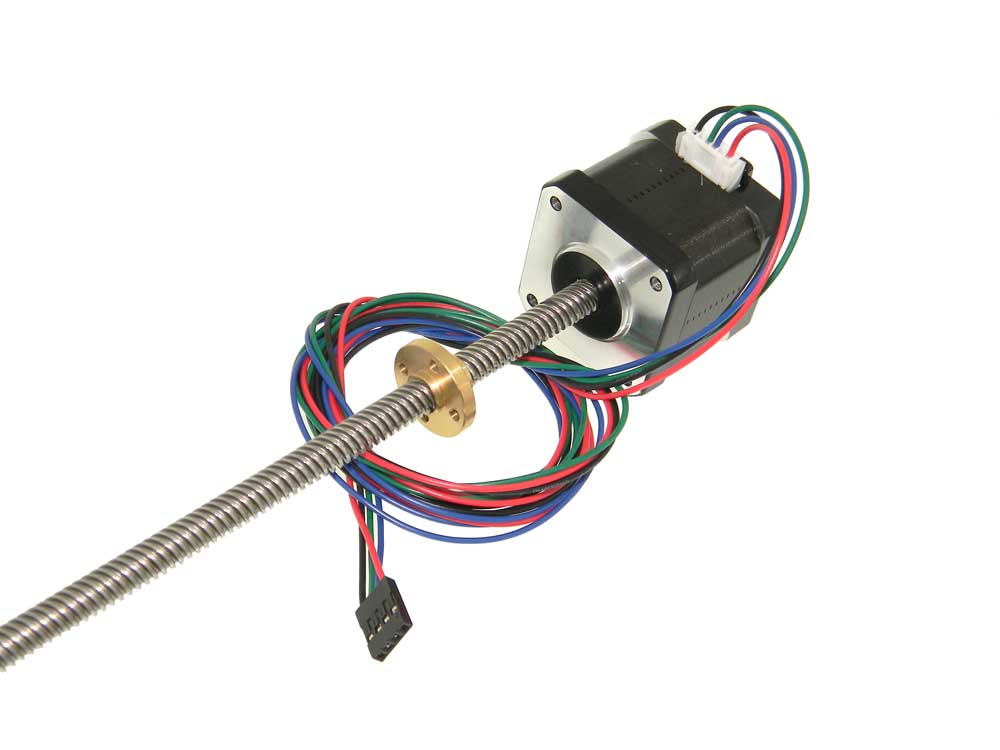

3D Printer/CNC Leadscrew with Stepmotor
Stepper motor with Leadscrew designed for 3D printing or CNC machines.
Motor: NEMA 17/Size 42, 2 Phase 4 lead
Step Angle : 1.8deg.
Thread: T8X2-4 Start, 8mm Lead
Length: 320 mm long,
Effective thread length:~275mm
Brass Travler Nut, 22mm Dia, four M3-0.5 threaded holes
Includes 1m cable for stepper NOTE: Leadscrew Not removable from Motor L: 355mm O/A W: 42mm HT: 50mm O/A WT: .9
