XT30 Mating Pair, 30Amp. Battery Connectors for RC Models


XT30 Mating Pair, 30Amp. Battery Connectors for RC Models
Images/38676-1.jpg Images/38676-large.jpg   California Proposition 65 Warning
Stock Number: 38676 PL
  Be the first to review this item
$1.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Mating Pair of 15A Power Connectors for RC Models.

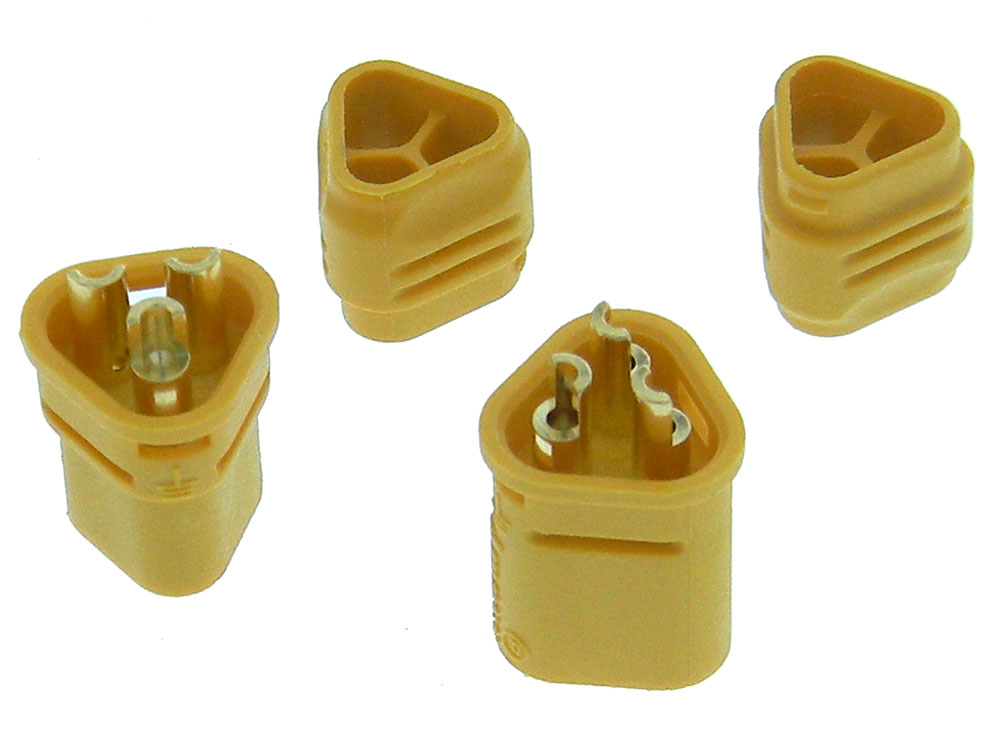

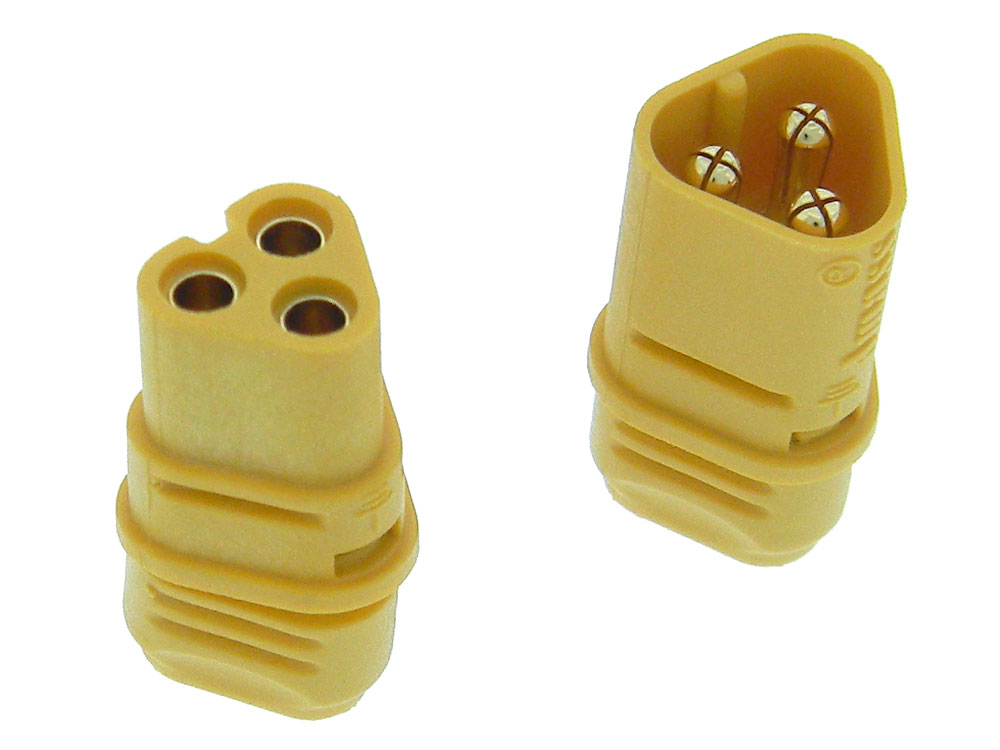

Amass Style MT30 Male & Mating Female connector with snap on cover for the wire side of the connector.
Pins: Gold Plated Brass
Body: PA nylon (polyamide)
Continuous Current: 15A Max
Instantaneous Current: 30A
Max Voltage: 500V
Initial Resistance: ~1m Ohms
Connections: Solder Cup
Wire: 16AWG
Operating Temp: -20°C to 120°C
L: ~19mm (~3/4") W: ~11.7mm (~11/16”)   WT:  .01pair

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
