Wireless Charger Module Pair


Wireless Charger Module Pair
Images/32187-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32187 PS
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$12.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

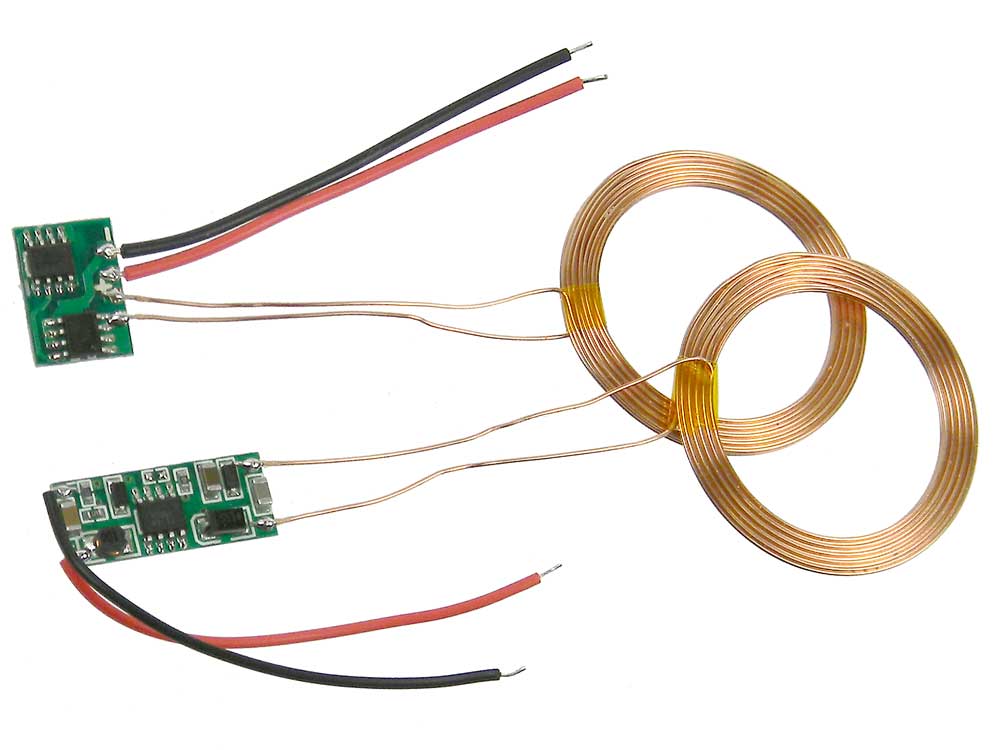

Inductive coupled pair consisting of a “transmitter” and “receiver” each with a small, flat coil. Designed to charge phones, players etc. Transmitter unit takes the DC input power and converts it to a AC signal which is coupled to the receiving unit that converts it back to DC. 2-3/8” power leads.
Power available is proportional to the distance & alignment the coils.
Input: 13.5VDC max 12V nominal
Output: 5VDC @ 600ma Max
T/R Range: ~ 20mm
Coils: 1-9/16” O/D X 1-3/16” I/D X 3/32” thick
Rec: L: 15/16” W: 3/8” HT: 1/8”
Trans: L: 5/8” W: 7/16” HT: 1/8”
WT: .03

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Works great once repaired
My unit arrived with two components on the receiver board not soldered completely. They were repairable tho tricky since they are surface mount and the board had an oxide on the solder pad. Once those were fixed it worked nicely as described. My application is to have a robot drive up to a charging base, fuel up and head back out
- Tom Baraniak, MN
