Waveform Generator, 4 Function DDS FG-100


Waveform Generator, 4 Function DDS FG-100
Images/36204-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36204 TE
  Be the first to review this item
$24.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

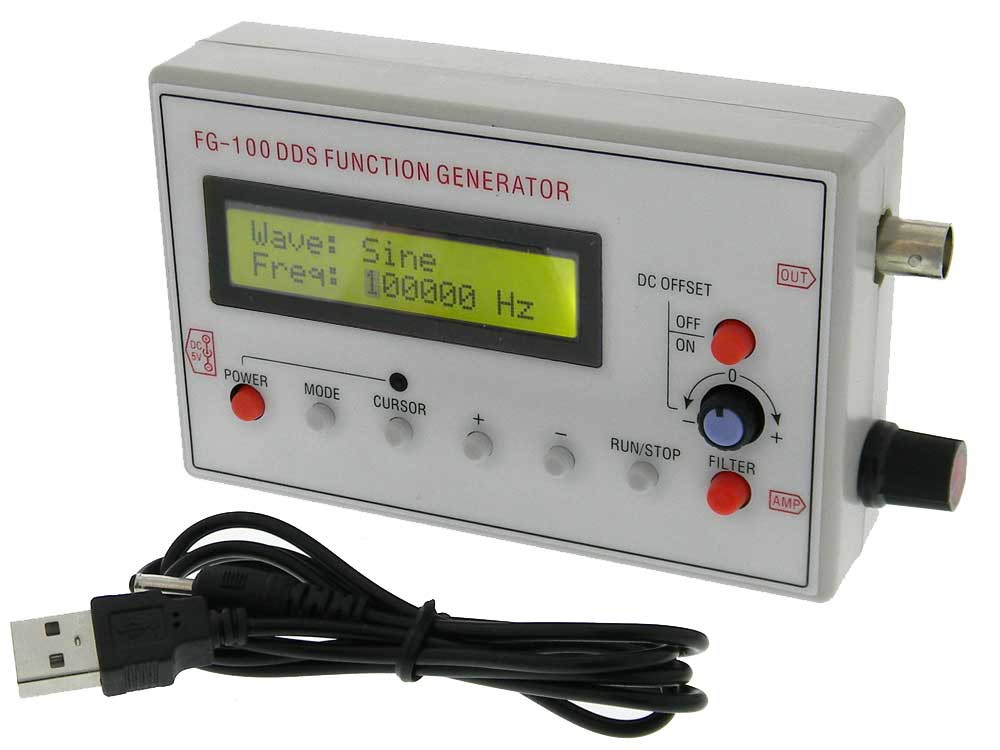

Designed for the hobbist; this compact, waveform generator uses Direct Digital Synthesis (DDS) to create waveforms.
(Basically stored data in a ATMega48, 8 bit Microcontroller)
Power: 3.5-10VDC (5V nominal) @ ~170mA (5V)
Output Waveforms: Sine, Square, Triangle, Forward Sawtooth, Reverse Sawtooth
Frequency Range:
- Sine wave frequency range: 1 Hz ~ 500 kHz (Output flat to 200 kHz)
- Rectangle wave frequency range: 1 Hz ~ 20 kHz
- Triangle wave frequency range: 1 Hz ~ 20 kHz
- Sawtooth wave frequency range: 1 Hz ~ 20 kHz
NOTE: As the frequency further increases, the output decrease
Resolution: 1Hz
Sine wave distortion: <1% below 1kHz, <0.5% above 1kHz.
Output Amplitude: Adjustable ~ ± 10V (PP).
Output Impedance: 50 ohms.
DC Offset: ~maximum ± 10V, with shutdown function
Includes 1m power cable (USB Type A Plug to 3.5mm Coaxial Plug
L: 5-1/2" W: 3-1/8" H: 1-1/2" WT: .5
