Voltage To Display Count Module


Voltage To Display Count Module
Images/33686-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 33686 MP
  Be the first to review this item
$7.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

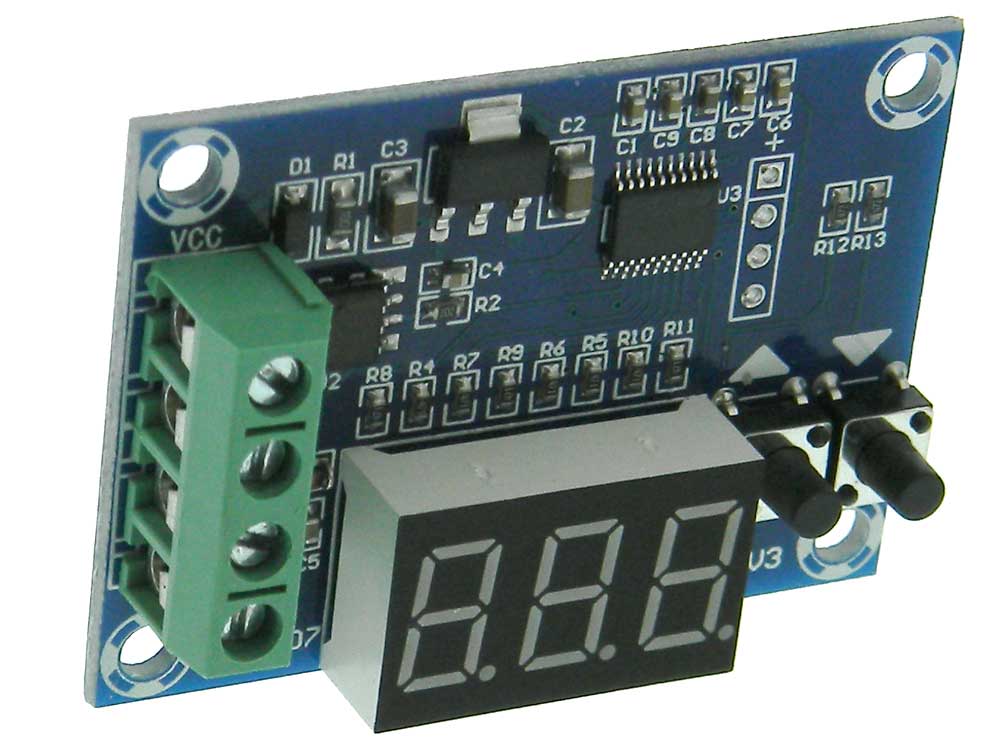

Novel little module that takes a Voltage and converts it to a count on the 3 digit display. You set the count scale factor using the Push Button switches.
Factory set at 999 so with a 5V input the display reads 999, 2.5V reads a count of 500.
Factor = 500, 5V in, display= 500, 2.5V in, display= 125
Factor =100, 5V in, Display= 100 etc.
Power: 12VDC
Input Range: 0 to +5VDC
Scaling: Adjustable: Max: 999
Display: 3 X .36” Ht. LED 7 segment Display
L: 2” W: 17/16” HT: 5/8” WT: .02


View PDF Data Sheet
