Voltage & Current Calibration Reference Source


Voltage & Current Calibration Reference Source
Images/38504-large.jpg   California Proposition 65 Warning
Stock Number: 38504 TE
  Be the first to review this item
$15.95


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

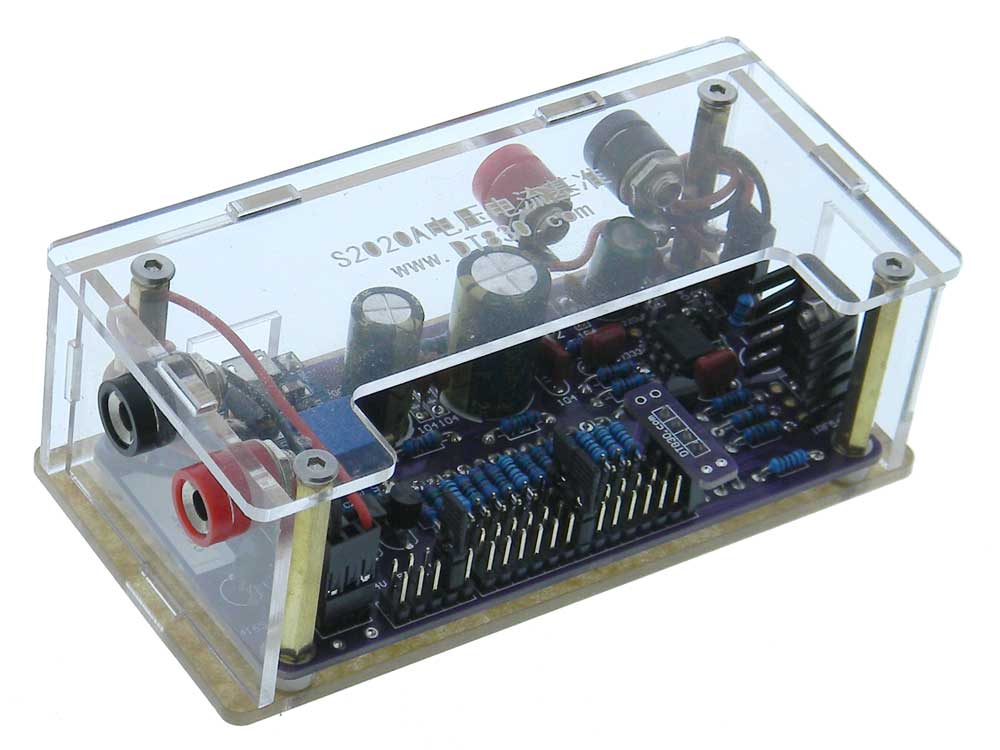

Compact reference Source for DC calibration of 3-1/2 Digit Multimeters, sensors. Pre-Assembled & Factory calibrated with plastic case. Power can be supplied by almost any 5VDC USB Charger.
5 Jumper Selectable Output Voltages
14 Jumper Selectable Output Currents.
Power: 5VDC
Output Voltages: 1.24V, 2.5V, 5V, 7.5V and 10V
Effectively can measure the accuracy of the 2V range of a multimeter.
Output Currents: 5uA, 10uA, 25uA, 50uA, 100uA, 250uA, 500uA, 1mA, 2.5mA, 5mA, 10mA, 25mA, 50mA & 100mA.
Connections:
Power: USB Type Micro B Jack
Voltage/Current: Banana Jacks
L: 115mm (4-1/2") W: 58mm (2-1/2") H: 42mm (1-1/8") WT: .3
