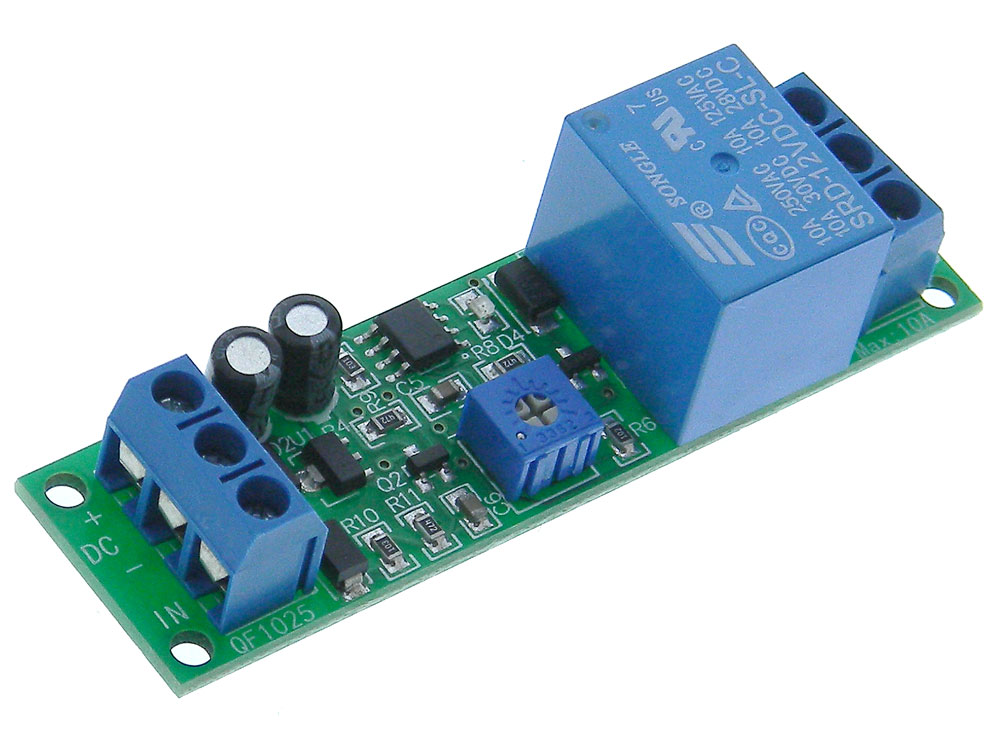

Time Delay Module, Adj. 2sec - 60sec. Delay on Break - 12V


Time Delay Module, Adj. 2sec - 60sec. Delay on Break - 12V
Images/37677-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 37676 RL
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$4.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET
Adjustable General use relay module provides approximately 2sec -60 Seconds. Delay on OFF (Break).
Trigger Input turns ON Relay & starts Turn OFF delay Time, after delay, Relay turns OFF
NOTE: Trigger is locked out for entire timing cycle.
Trigger: Low level signal (Ground) <20mS.
LED Relay energized indicator.
Power: 12DC @ ~50mA energized
Timing Range: <2 to ~60sec.
NOTE: Control is a single Turn! Precise Adjustment
is tricky.
Relay: SPDT 10A @125/250VAC/28VDC
LED lights when contacts close.
Terminal strips in & Out.
Operating Temperature: -25°C ~ 85°C
Humidity: 5% to 95% RH
L: 2-3/4” (70mm) W: 3/4” (20mm) H: 3/4” (20mm) WT: .04

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Relay didn't work
I checked for power at relay contacts with multimeter, light came on board but nothing on relay, I'll give one more try as I ordered in past without issue.
- Eric S, IL
