Quad Relay Board, Isolated 12V


Quad Relay Board, Isolated 12V
Images/35361-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 35361 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$6.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

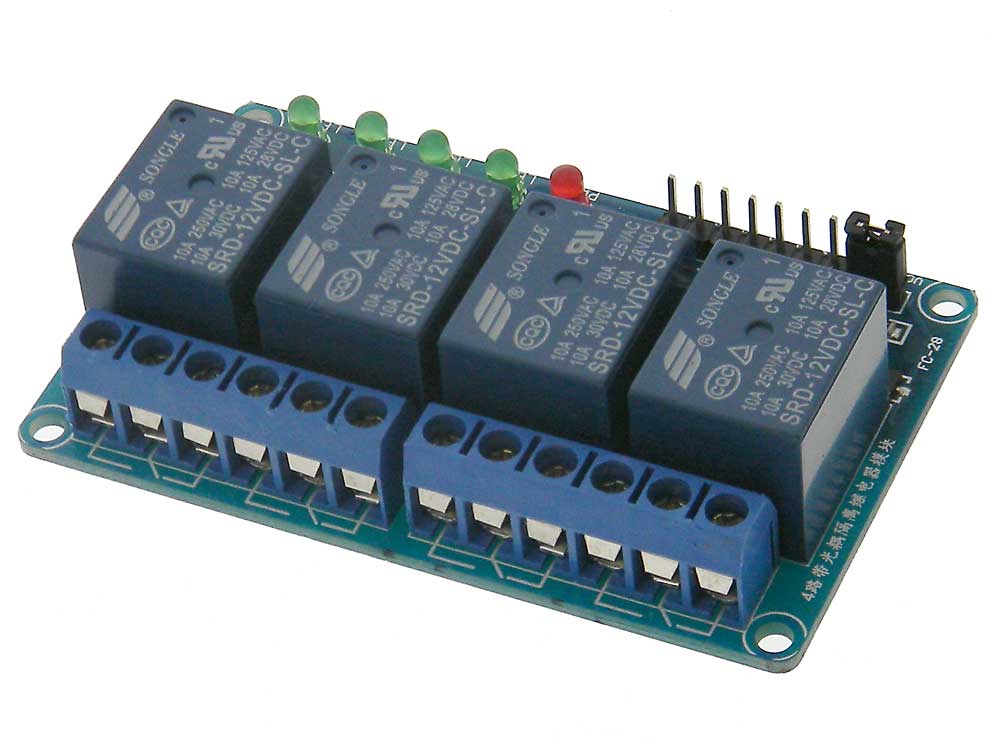

Opto-isolated Quad relay board designed to be driven a Arduino or other micro controllers.
LED indicatorsfor power & each input.
Board inputs are Opto isolated with a common Ground
Jumper select to use Vcc (5V) or a separate Vcc1 for relay power.
Power:12VDC (Relays)
Trigger: 5-15VDC <20mA (Each)
Connections: .1in. pitch header with Vcc, Vcc1 (Relay Power) Gnd, and an input pin for each relay.
Terminal Strip for Relay Contacts
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
Output: Terminal strips.
L: 2-7/8" W: 1-3/4" H: 13/16" WT: .12
