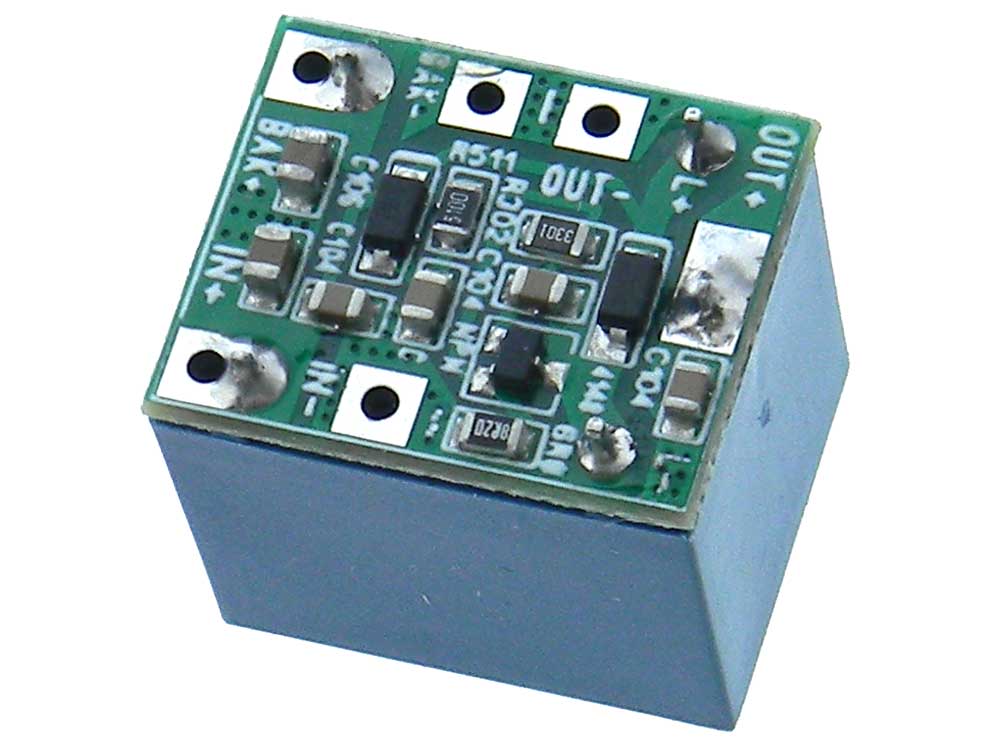

Power Fail Switch Over Module, Dual Source, 12VDC


Power Fail Switch Over Module, Dual Source, 12VDC
Images/38633-large.jpg   California Proposition 65 Warning
Stock Number: 38633 MI
  Be the first to review this item
$2.95
$2.10
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Power switching module/uninterruptible power supply (UPS).
Switches to a secondary power source if primary fails.
Module does not support adjustable voltage power supply because the power supply response speed is slower than the detection speed of module,
NOTE: Not to be used for motors
Primary Input: 12VDC (13.6 Max)
Low Limit on Primary: 10.5 to 10.6V (~10%)
Backup Input: 12VDC (13.6 Max)
Switching Time: 10ms or better
Current: 3A Max.
L: 19mm (~3/4") W: 15mm (~9/16") H: 19mm (~3/4") WT: .02
