Panel Meter, LED 0-50A AC with CT


Panel Meter, LED 0-50A AC with CT
Images/32928-large.jpg Images/32928-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32928 ME
  Be the first to review this item
$15.95
$8.99
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

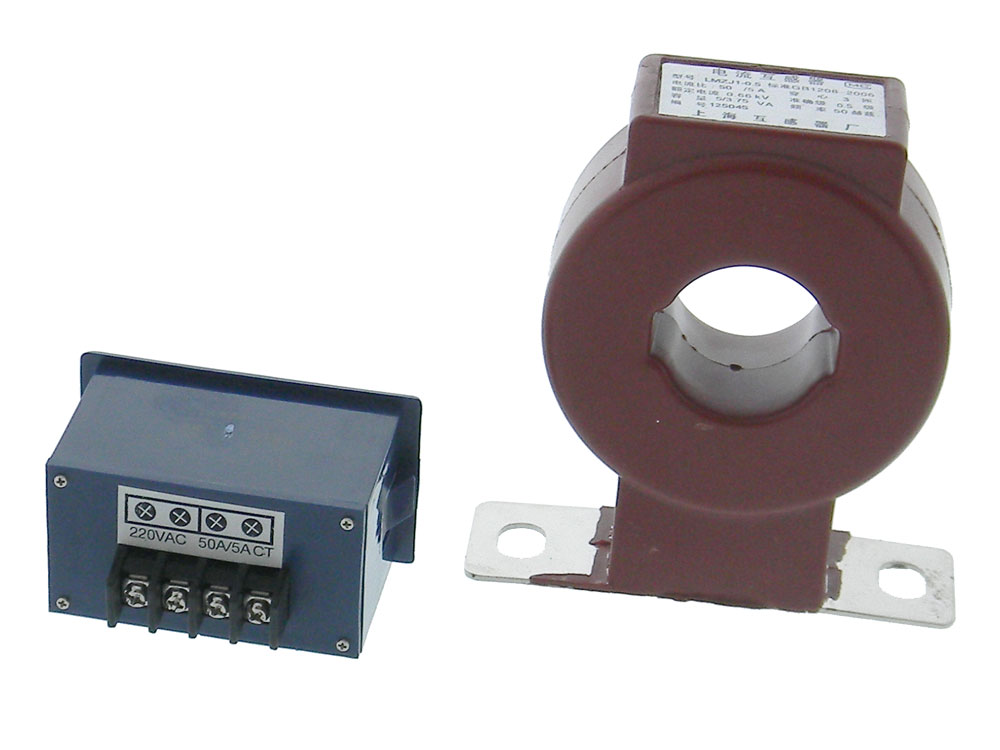

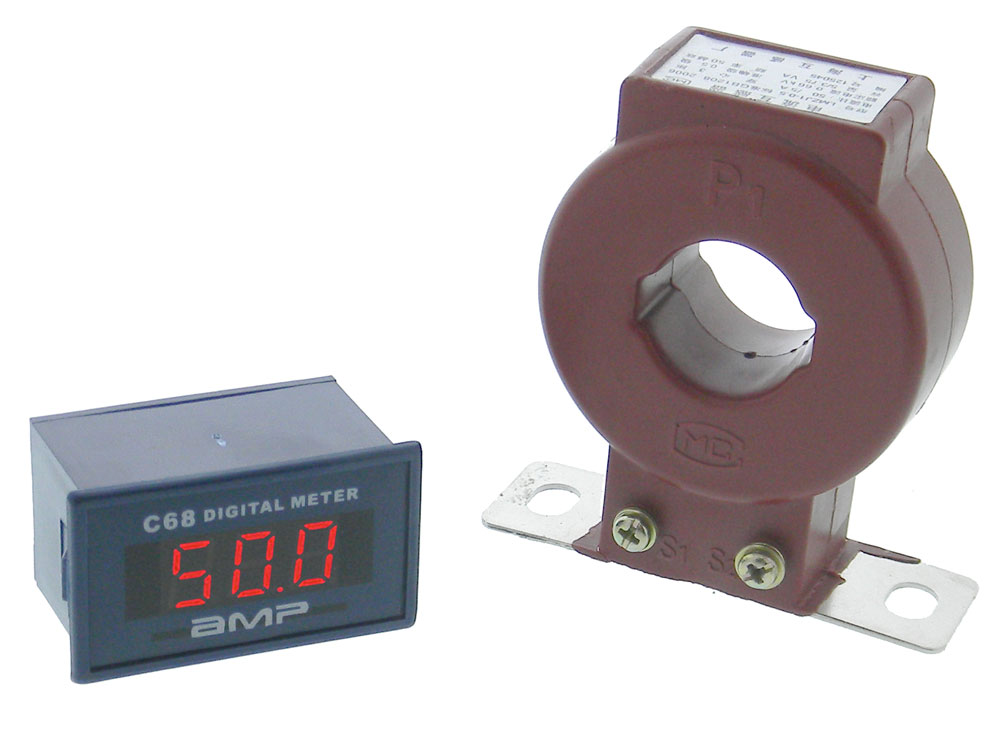

Enclosed, Snap-in, 3 digit Red LED Panel Ammeter with 50/5A Current Transformer.
METER
Input: 0-5A (50A with CT)
Meter Power: 220VAC
Resolution: .1A
Accuracy: +-1% +- 2LSD
Refresh Rate: ~5/Sec.
Character Height: 0.56in.
Terminal Strip for Power & Input
Cutout: 68mm X 38mm
CURRENT TRANSFORMER
Primary Turns: 3
Rated Voltage: 500VAC
Accuracy Class: .5
Frequency: 50Hz (OK for 60Hz Operation)
Center Hole: 1-1/4in. Dia.
Buss Bar Slot: ~1-1/2in. X 3/8in. centered horizontally in Hole
Secondary Connection: Screw
Meter W: 2-15/16” H: 1-11/6” D: 2-1/8” WT: .15
C/T H: 4-1/2” L: 4-1/4” D: 1-5/8” WT: 1.4
SHIP WT: 1.7
