Panel Meter, LCD Display - AC Volts, Amps, Watts & PF


Panel Meter, LCD Display - AC Volts, Amps, Watts & PF
Images/37214-large.jpg Images/37214-1.jpg   California Proposition 65 Warning
Stock Number: 37214 ME
  Be the first to review this item
$19.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

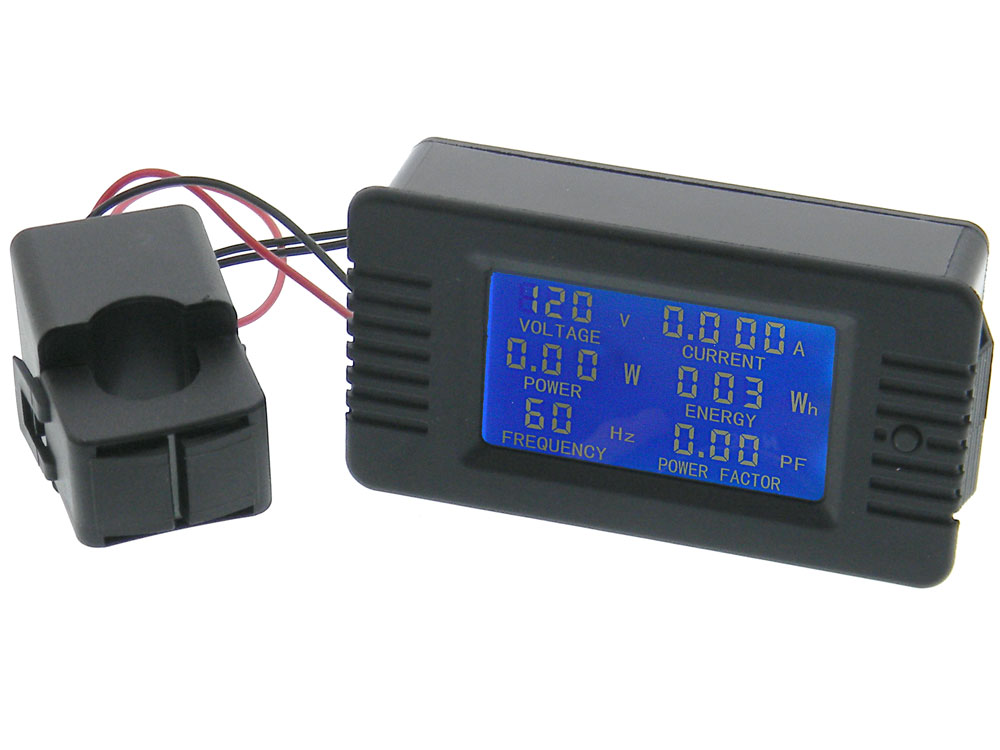

Snap-in, panel mount AC Multifunction meter with: Volts, Amps, Watts, Frequency & Power Factor
LCD Display White Characters on Blue
Character Height: ~6mm
Input Voltage: 80-260VAC 50/60Hz SINE WAVE ONLY
Resolution: 1V
Accuracy: +-1% +-2LSD
Input Amps: .02A-100A
Resolution: Amps: <10A: .001A/ <100A : 0.01A
Accuracy: +-1% +-2LSD
Power: 0.02W-22KW:
Resolution: <10W: 0.01W/<100W : 0.1W/ <1000W: 1W/ <10KW: .01KW/<22KW: 0.1KW
Energy Used:
Range: 0~999kWh
<1kWh: 1WHr/ <10kWh: 10WH/>10kWh: 1kWh
Power Factor: 0-1
Resolution: .01PF
Frequency: 45-65Hz
Resolution: 1Hz

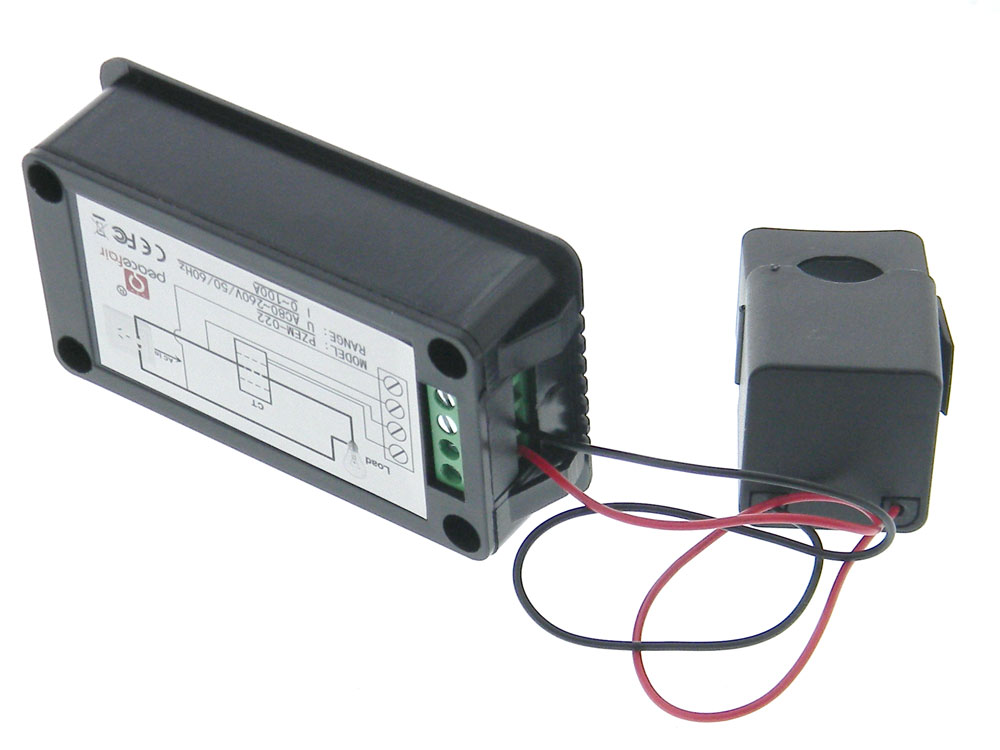

Terminal Strip for Connections
Current Transformer: Snap-on
H: 2: W; 1-1/8" T: 1-1/8"
I/D: 16mm
8" Leads
Meter Cutout: 87mm X 47mm
W: 3-1/2" H: 1-15/16" D: 1" WT: .4
