Pack of 4- Connector, 9 Pin Female, Keyed, 5.03mm Pitch


Pack of 4- Connector, 9 Pin Female, Keyed, 5.03mm Pitch
Images/36305-large.jpg Images/36305-1.jpg Images/36305-2.jpg   California Proposition 65 Warning
Stock Number: 36305 PL
  Be the first to review this item
$5.79
$3.95
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

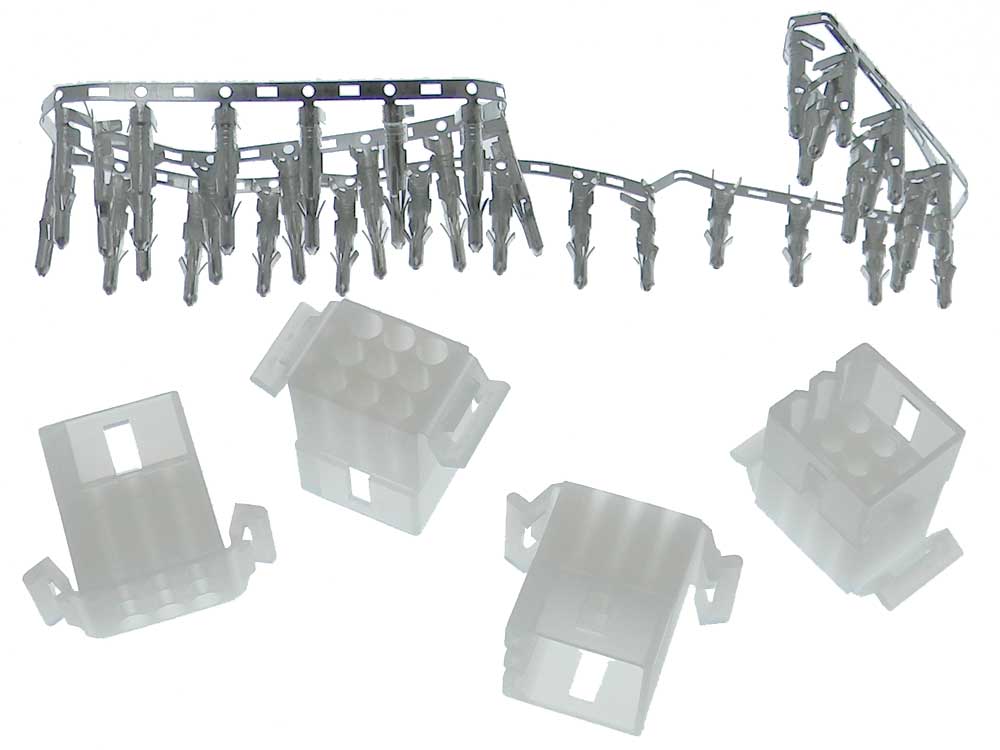

Sold as a Pack of 4

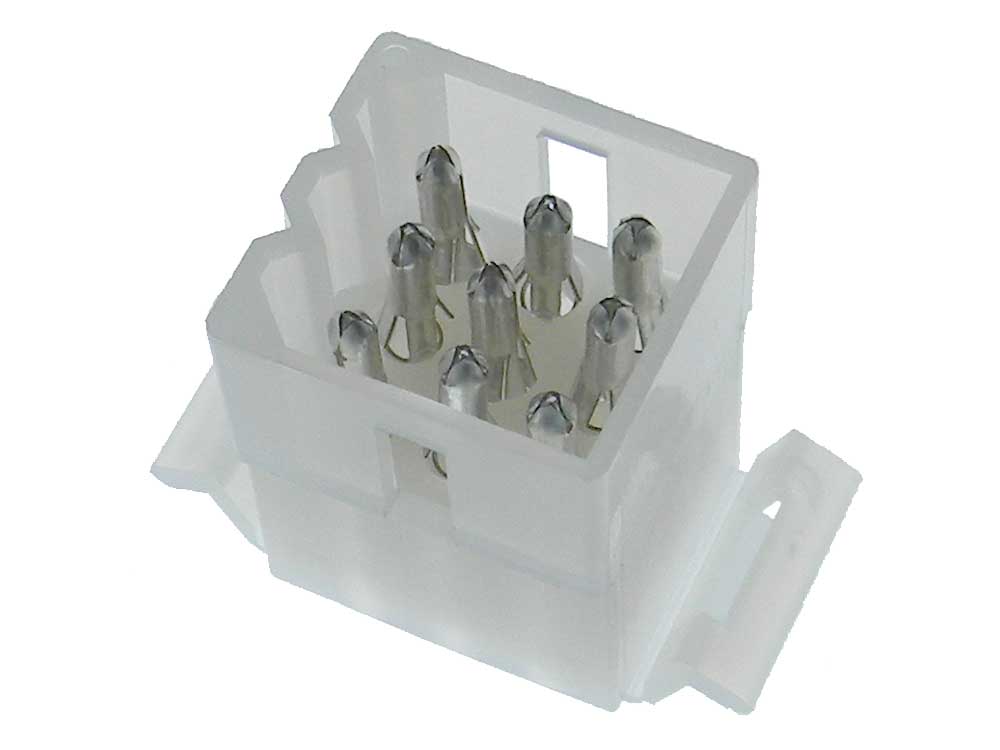

9 Pin connector, Female Housing with Male crimp Pins.
Voltage: 300V AC/DC
Current: 9A Max
Wire: 14-20AWG
Male Pin Dia: 2.3mm (~0.091")

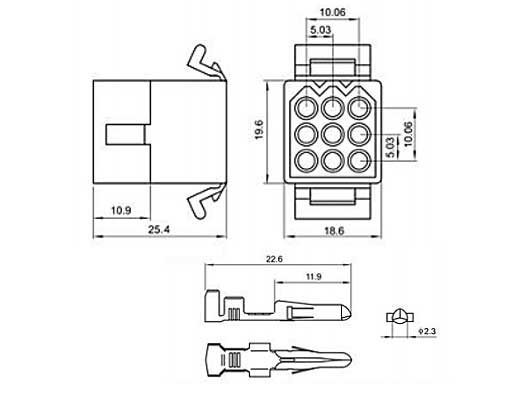

Pitch: 5.03mm
Temp. Range: -25°C to ~85°C
Housing: Nylon66
Terminal. Tin Plated Phos. Bronze
Mating Connector: 36311-PL
WT: .08/Pack of 4
