Pack of 10 - PD204-6B PIN IR Photo Diode


Pack of 10 - PD204-6B PIN IR Photo Diode
Images/36533-large.jpg Images/36533-1.jpg   California Proposition 65 Warning
Stock Number: 36533 OP
  Be the first to review this item
$1.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Sold as Pack of 10

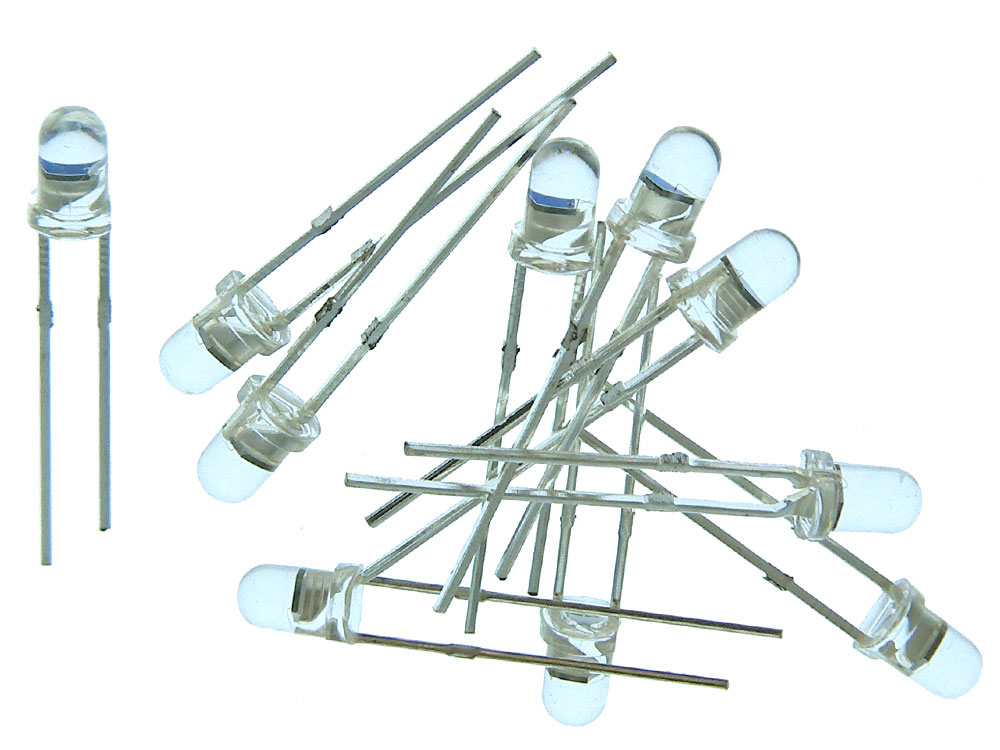

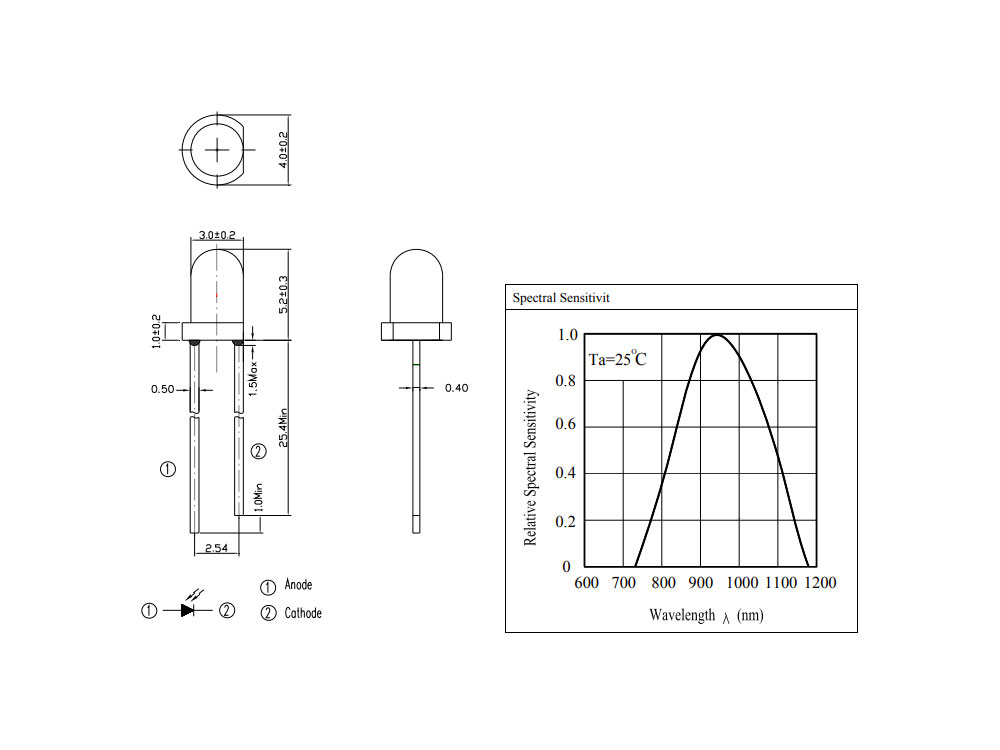

PD204-6B is a high speed and high sensitive PIN photodiode in a standard 3mm (T1) water clear plastic LED style package with dark internal filter.
Long Lead: Anode
Shorter Lead: Cathode
Sensitive to Infrared radiation.
Reverse Voltage: 32V max
Reverse Dark Current (Id): 10na max
Peak Wavelength: 940nm
Specral Bandwidth: 800-1100nm
Rise Time/ Fall Time: 5ns
Max power: 150mW @ 25°C
Mounting: Through hole 5/8in leads
Direction of Sensitivity: Top Dome
WT:.01/pack
