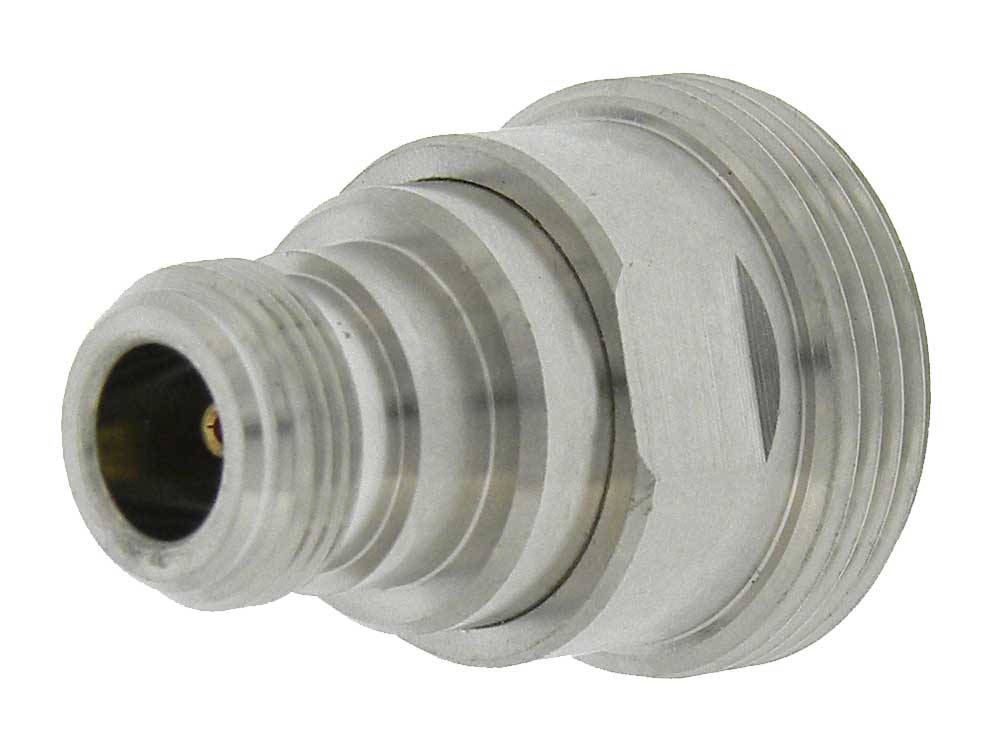

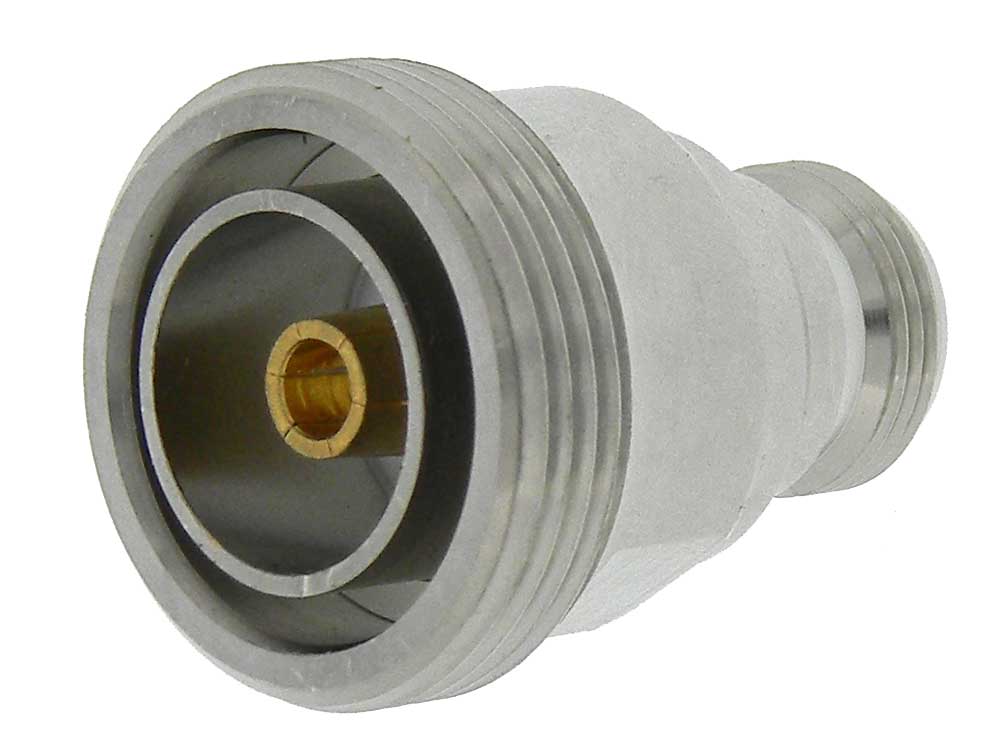

N type Female to L29 7-16 Female Connector adaptor


N type Female to L29 7-16 Female Connector adaptor
Images/36259-large.jpg Images/36259-1.jpg   California Proposition 65 Warning
Stock Number: 36259 RC
  Be the first to review this item
$9.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

IP67 rated, adapter to convert the L29 7-16 (DIN) connector to Type N cable systems that are used in Test Equipment, Base Station mobile radio system (GSM) and others. The L29 internal thread is Left Hand, 29mm, 1.5mm pitch.
Impedance: 50 Ohms
Frequency: DC to >5GHz
VSWR: <1.05 DC-3GHz <1.2 3-6GHz
Loss: <0.1dB
Temp. Range: -45°C to +85°C
Insulator: Teflon
DIA:1-1/8" L: 1/1/2" WT: .16
