Motor Speed Control, DC 10A Surge, 10-48V


Motor Speed Control, DC 10A Surge, 10-48V
Images/37262-large.jpg Images/37262-1.jpg   California Proposition 65 Warning
Stock Number: 37262 MD
  Be the first to review this item
$11.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

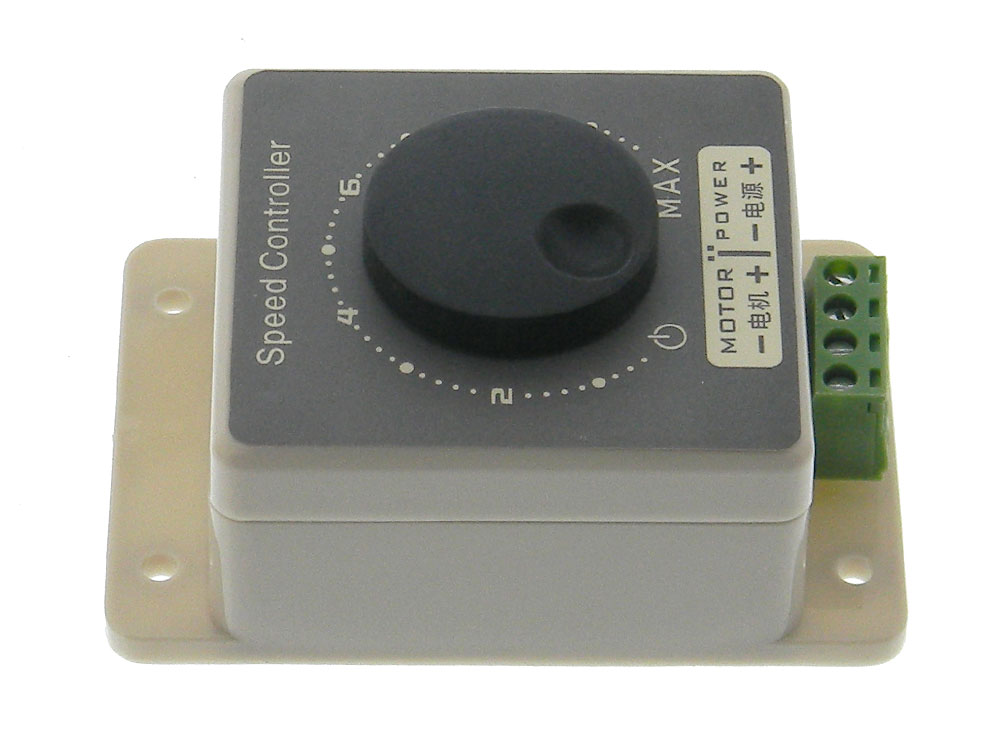

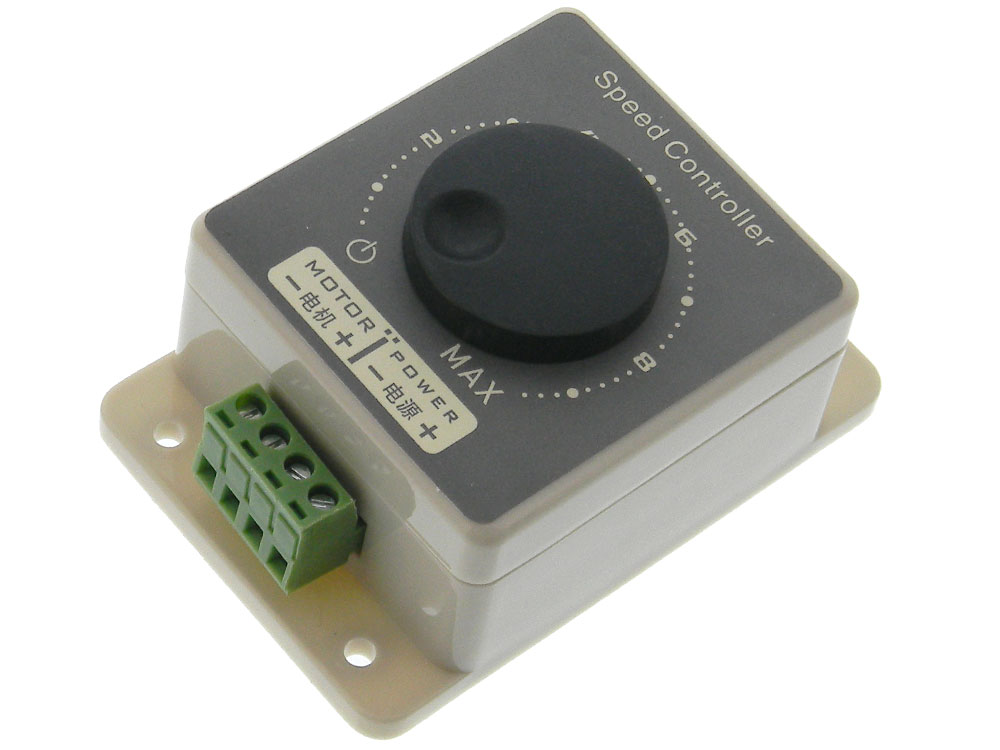

Wide range control uses PWM to vary the speed of DC motors. Adjustment pot with power switch insures that motor starts at lowest speed.
Terminal strip for Power & Motor connections.
NOTE: DO NOT REVERSE INPUT + & - CONNECTIONS!
Speed range: ~5%-100% rated motor RPM
PWM frequency: ~25KHz
Input voltage: DC10-48V (12/24/36 Recommended)
Output voltage: ~95% of the input voltage
Max Power: 12V x 10A=120W, 24V x 10A=240W
Limit Power to ~300W
Rated current: 10A
Surge Current: 20A
Plastic Case With 4 Mounting Holes.
L: 3-1/2" W: 2-1/4” H: 1-3/4” O/A WT: .2
