Mini X-Y Joystick 10K with Mushroom Knob


Mini X-Y Joystick 10K with Mushroom Knob
Images/34792-large.jpg Images/34792-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34792 MI
  Be the first to review this item
$2.95
$0.99
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

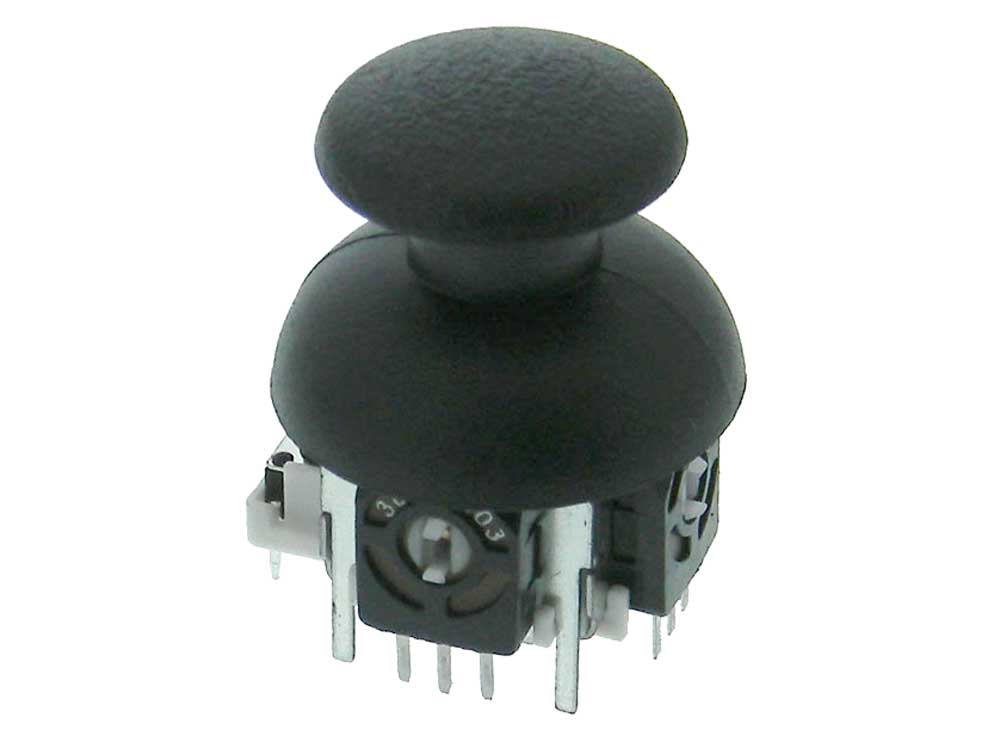

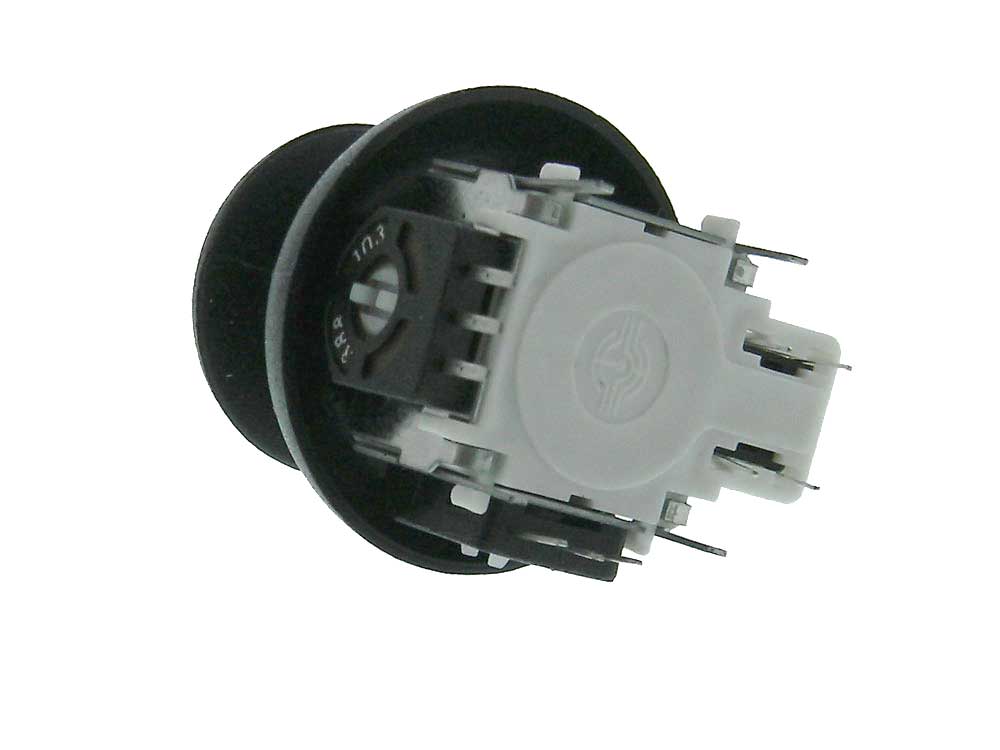

P.C. board mount, mini joystick with press to activate SPST-NO switch used in Games etc.
Automatically centers when released
Resistance: Dual 10K pots. +-20%
Rated: 1/8W
X-Y Motion Range: +-30deg
Switch: SPST-NO
Rated: 50mA @ 5VDC/50VAC
Mushroom head knob: 3/4" Dia
L: 1" W: 13/16" HT: 1/2" Body 1-5/32" with Knob
WT: .02

View PDF Data Sheet
DATA SHEET
