MQ-3 Ethanol Sensor for Arduino


MQ-3 Ethanol Sensor for Arduino
Images/32362-large.jpg Images/3236x-1.jpg   California Proposition 65 Warning
Stock Number: 32362 MP
  Be the first to review this item
$4.95
$2.89
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

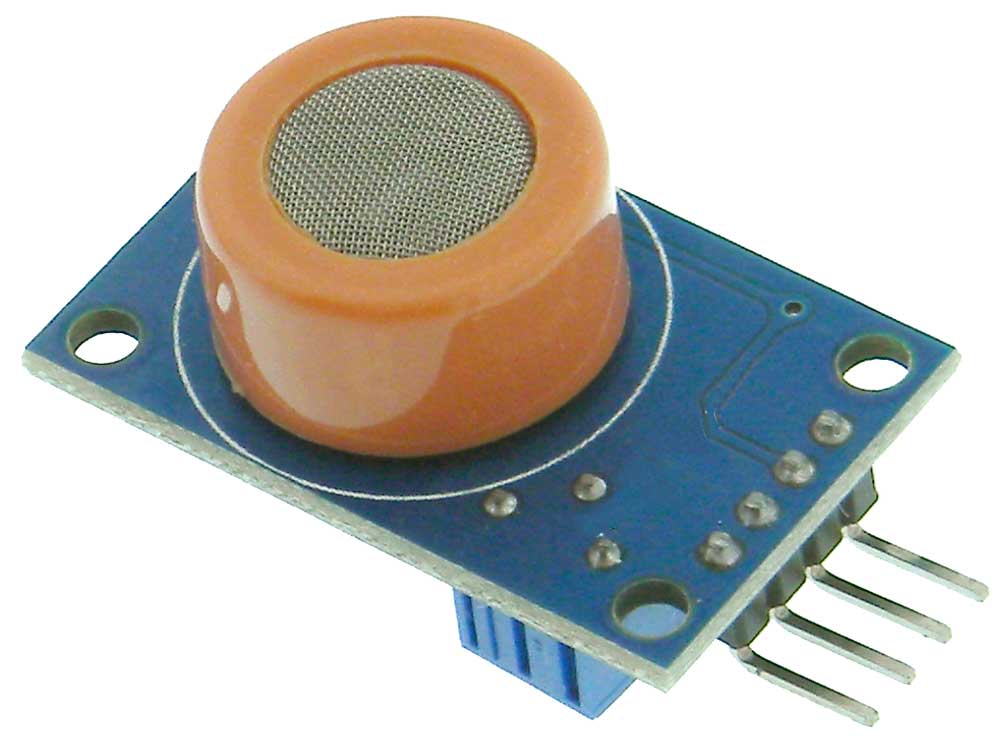

State of the Art MQ-3 Ethanol Sensor for Microcontrollers
MQ-3 sensor coupled with a simple adjustable comparator circuit using a LM393 IC. Detects Ethanol Alcohol in the air. Designed to interface to a Arduino or other micro controllers. Freeware available through www.arduino.cc.en and other web sites.
Power: 5VDC
Outputs: TTL Compatible Digital & Sensor Direct Analog
4 Pin .1in. Pitch Header pins for Power & Output
LEDs for Output and Power status indication.
Detection Zone: 0.05mg to 10mg/L: 10-1000ppm
Response Time: <10Sec. Recovery Time: <30Sec.
Enviromental: -10 to +50C, Humidity; <95%, <21% Oxygen
L: 1-1/4" W: 13/16" H: 5/8" WT: .02
