Detailed Description

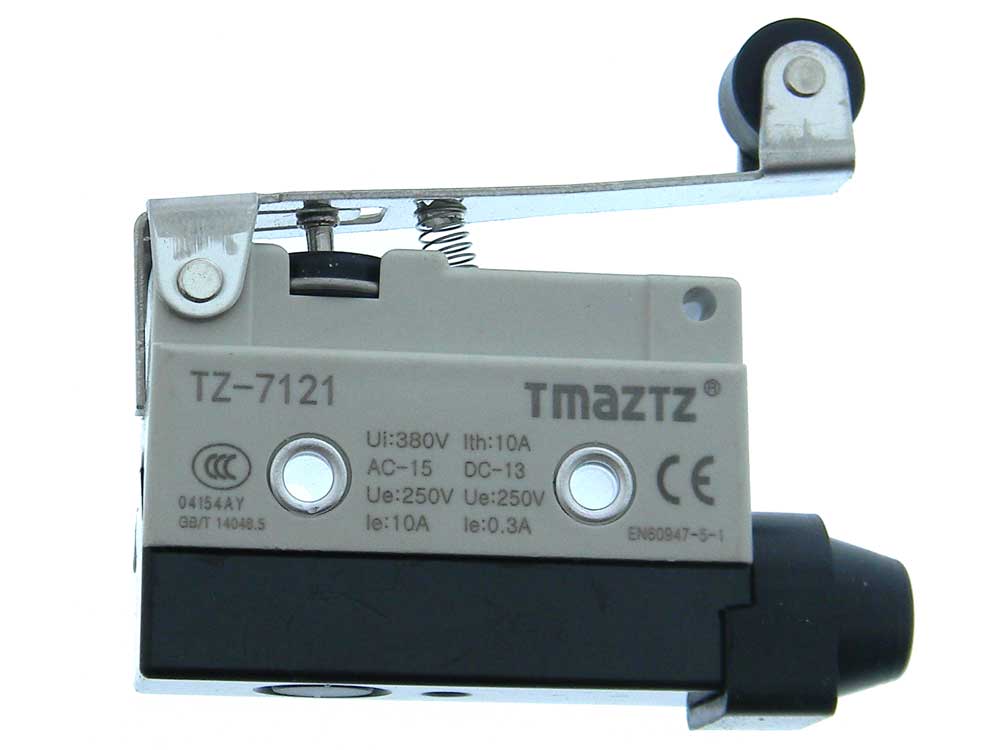

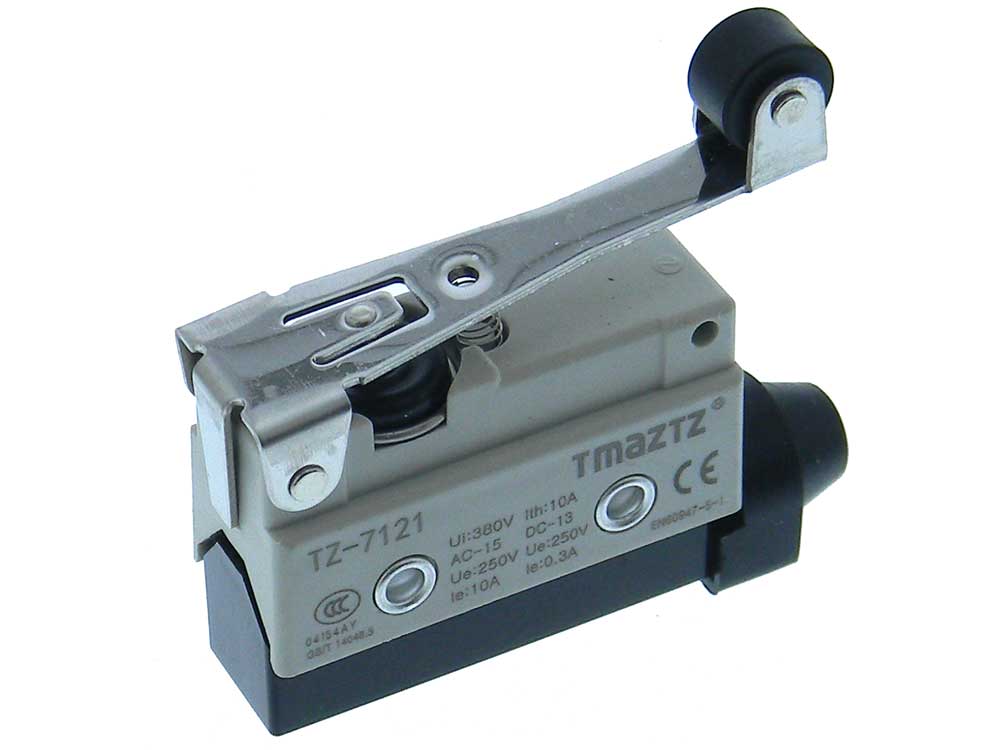

Enclosed SPDT limit switch with High Repeatability and Durability of 10 Million Operations Minimum. Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches.
Model: TZ-7121
Rated: 125VAC 10A Resistive
Lever: 2-1/2:
Roller: Nylon 12.5mm Dia. (1/2") x 8mm
Operating Force OF: 1.764N (Miax)
Release Force RF: 0.49N (Min)
Pre-Travel PT: 11.0mm (Max)
Over-Travel OT: 3.0mm (Min)
Movement Differential MD: 2.4mm (Max)
Operational Position OP: 40±1mm
L: 70mm (2-11/16") W: 20mm (3/4") :H 65mm (2-9/16")
WT: .12
