Light Intensity Sensor Module for Microcontrollers


Light Intensity Sensor Module for Microcontrollers
Images/35494-large.jpg   California Proposition 65 Warning
Stock Number: 35494 MP
  Be the first to review this item
$3.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
TSL2561Data

View PDF Data Sheet
Schematic

View PDF Data Sheet

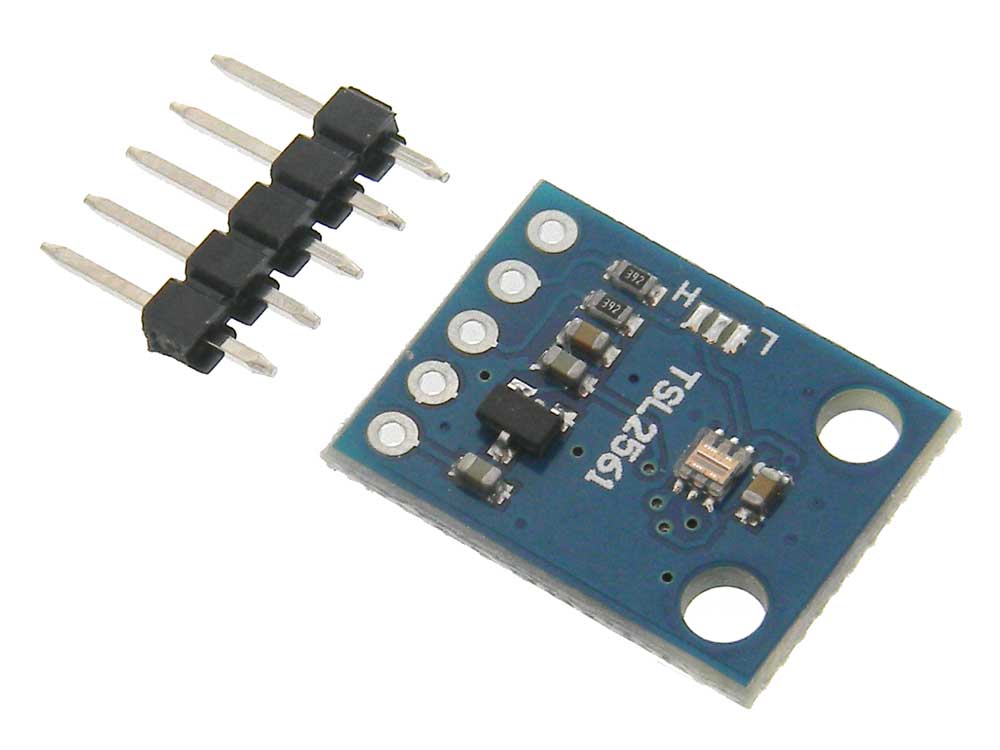

Light Intensity Sensor Module using the TSL2561 sensor chip. The light sensor has a flat response across most of the visible spectrum. Measures both infrared and visible light to better approximate the response of the human eye.
The TSL2561 is capable of measuring small and large amounts of light uses I2C communication to a microcontroller.
Programmable Interrupt Function with User-Defined Upper and Lower Threshold Settings
16-Bit Digital Output I2C (TSL2561) Fast-Mode @ 400 kHz
Programmable Analog Gain and Integration Time Supporting 1,000,000-to-1 Dynamic Range
Auto Rejects 50/60-Hz Lighting Ripple
Low Active Power (0.75 mW Typical) with Power Down Mode
Intensity Range: 0.1 - 40k+ Lux
Power: 3V @ .6mA active
Drivers online from Arduino and several forums.
Connections: 0.1pitch header
L: 3/4" W: 9/16" HT: 1/8" (No Headers) WT: .01
