Infrared Range Sensor 10-80cm


Infrared Range Sensor 10-80cm
Images/36739-large.jpg Images/36739-1.jpg   California Proposition 65 Warning
Stock Number: 36739 MP
  Be the first to review this item
$7.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

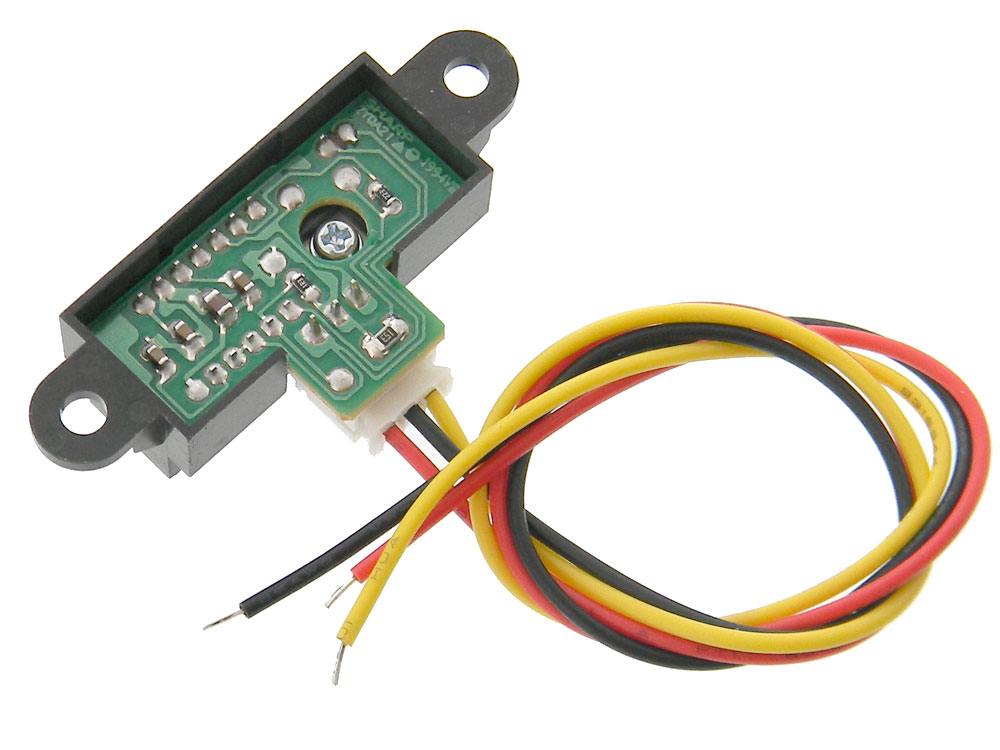

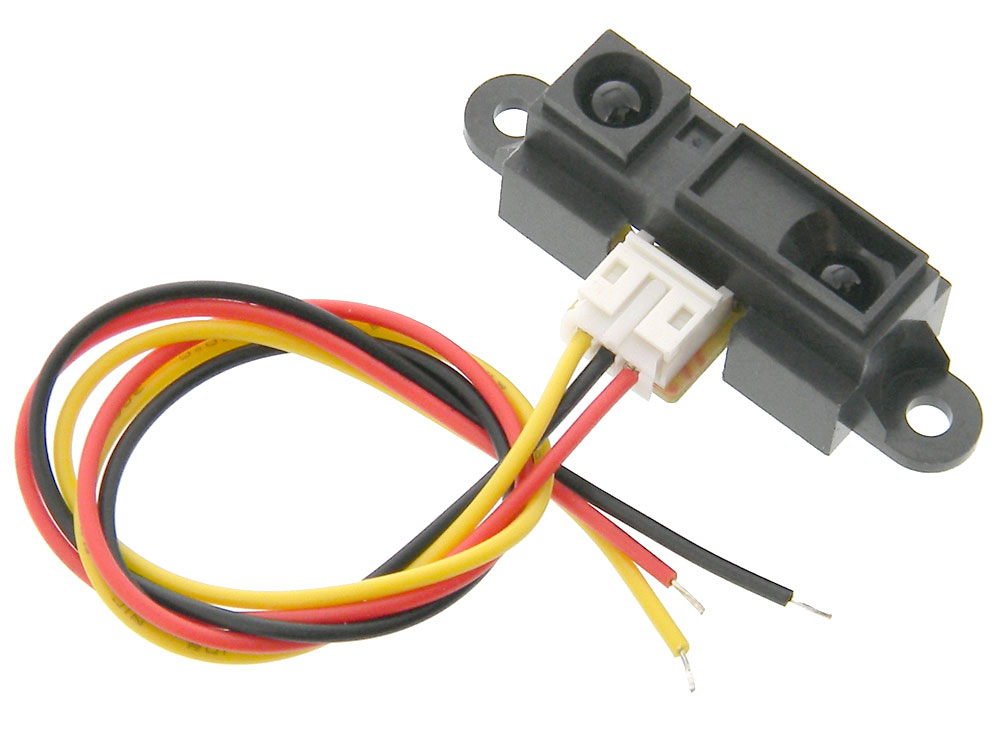

Distance measuring module for Arduino, Rasberry-Pi type microcontrollers. Combination of position sensitive detector, IRED diode and signal processing circuit. Module outputs a voltage corresponding to the detection distance. Can also be used as a proximity sensor.
Power: 4.5-5.5VDC @ <40mA
Sensing Range: 10-80CM (~4" to 31")
Output: Analog Voltage:
Differential L=10cm to 80CM Typ.1.9V
(~ 2.3 V when an object at 10 cm to 0.4 V when an object is at 80 cm)
Includes mating connector with 7in. Pigtail
USEFULL LINK FOR ARDUINO:
https://www.makerguides.com/sharp-gp2y0a21yk0f-ir-distance-sensor-arduino-tutorial
L: 1-3/4" W: 3/4" H: 1/2" WT: .02
