Impulse Counter, Resetable, 6 Digit12-24VAC/DC


Impulse Counter, Resetable, 6 Digit12-24VAC/DC
Images/38667-large.jpg Images/38667-1.jpg   California Proposition 65 Warning
Stock Number: 38667 MI
  Be the first to review this item
$11.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

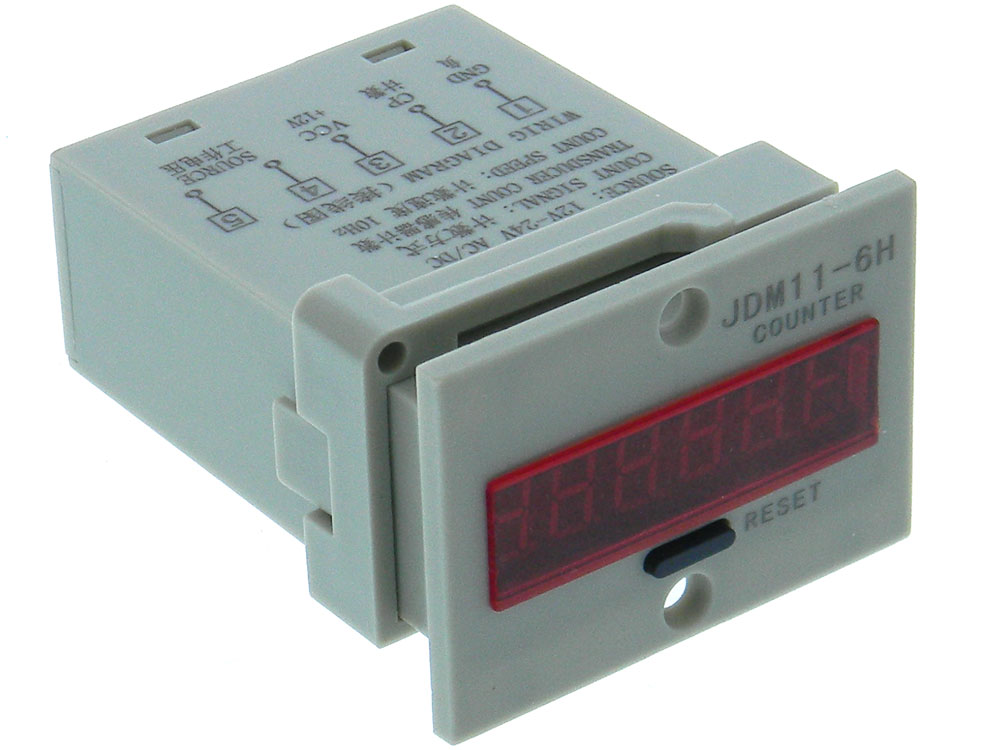

6 Digit, Red LED Impulse Counter with manual front panel Reset
P/N: JDM11-6H
Supply Voltage: 12-24V AC//DC
Power: <3VA Max
Display: 0.38-inch Height Red LED
Input Signal: Normally Open Contact, NPN 3 wire Sensor
Maximum Counting Speed: 10cps
Sensor Power Output: +12VDC (Vcc)
Power Off Memory: ~10 Years
Counting Error: <1
Reset Time: <0.5S
Power On Settling Time: <1s
Dielectric Strength: 2000VAC, 50/60Hz for 1min
Insulation Resistance: 100MW min. at 500 VDC
Working Temperature: -5 to 45 °C

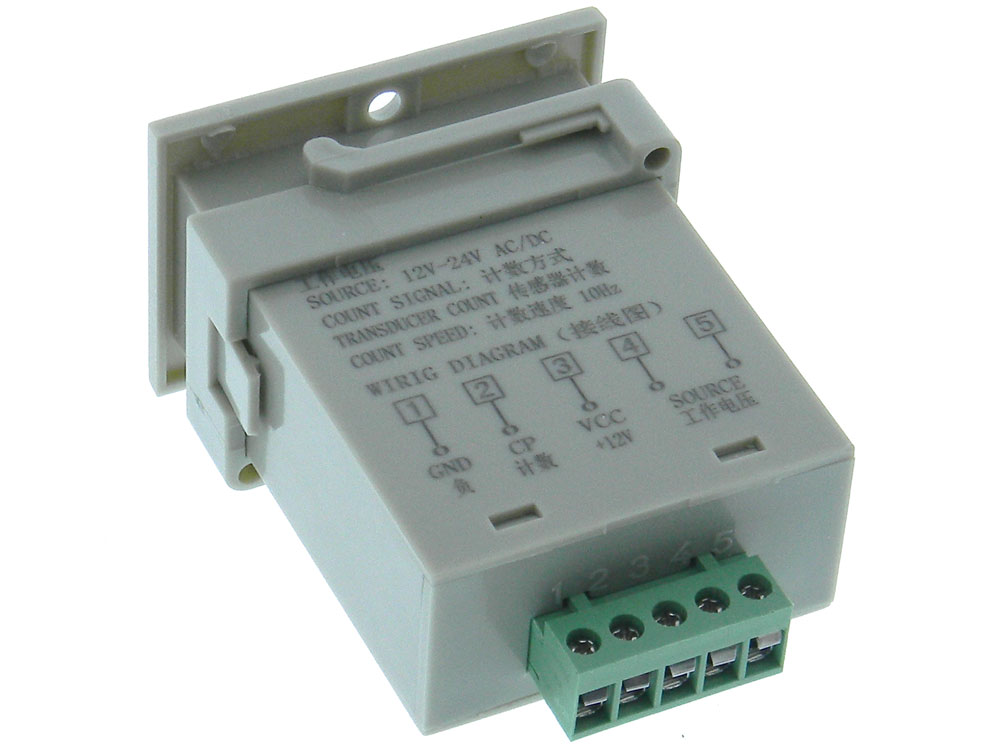

Connections: Rear Terminal strip
Cutout: 50.5 x 25.5mm
Panel Thickness: 5mm Min/7mm Max
W: 56mm (~2-1/4”) H: 40mm (~1-9/16”) D: 82mm (~3-1/8”) WT: .16
