Hall Effect Current Sensor Module, 20Amps, ACS712T-20


Hall Effect Current Sensor Module, 20Amps, ACS712T-20
Images/31944-LARGE.jpg   California Proposition 65 Warning
Stock Number: 31944 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$3.95
$0.95
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Current Sensor for Microcontrollers

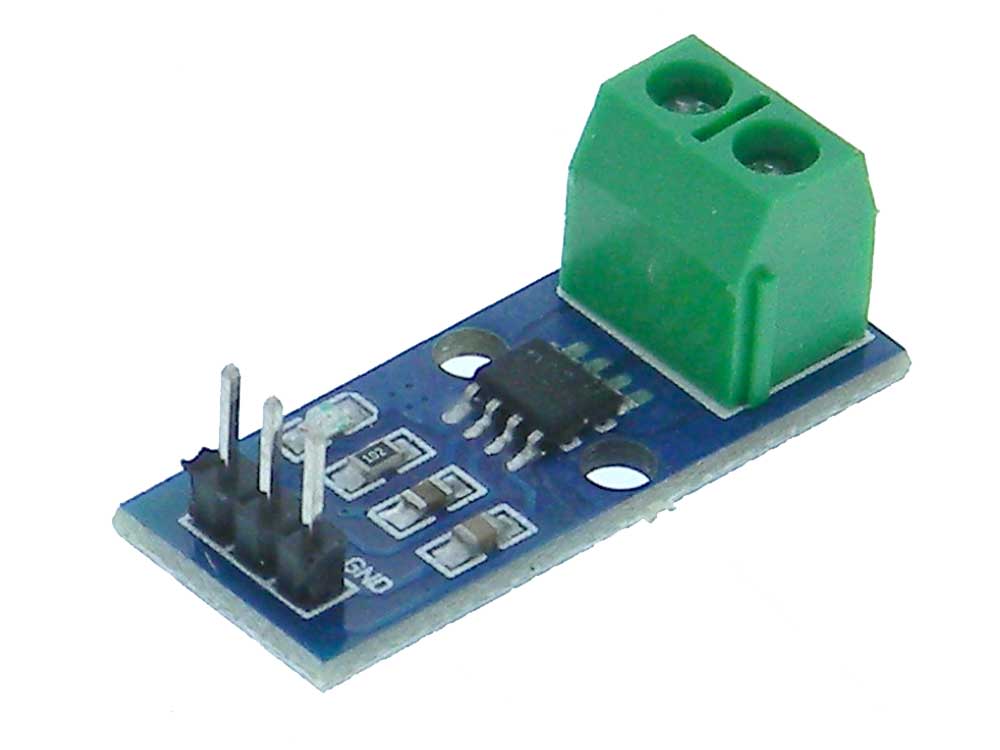

20Amp Current Sensor Module based on the ACS712TELC-20A sensor mounted on a convenient board.
Terminal strip for connecting in series with load
0.1" Pitch Header pins to interface with your Arduino or micro controller.
Power: 5VDC +-0.5V
Power LED
Measures: 20 Amps AC or Positive/Negative DC
Sensitivity: 100mV per Amp
Warning: This IC uses a hall effect and is susceptible to a magnetic fields!
L: 1-1/4" W: 1/2" T: 9/16" WT: .01


View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Does a great job at sensing current
This product does a great job at sensing current.
