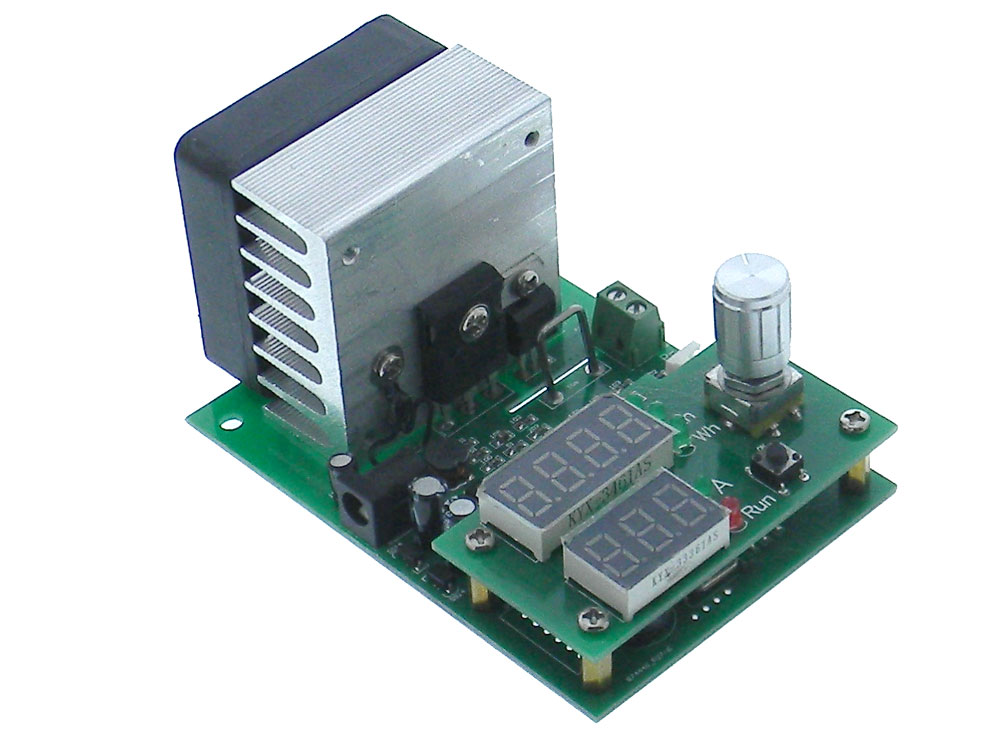

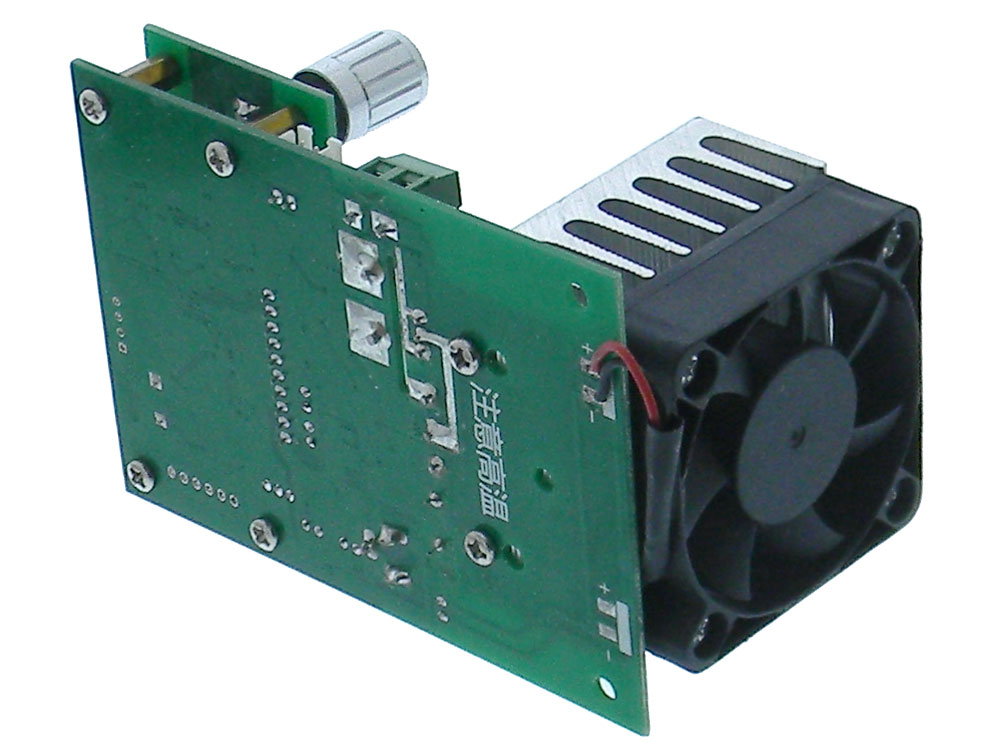

Electronic Load 10A 60W 30VDC


Electronic Load 10A 60W 30VDC
Images/34725-large.jpg Images/34725-1.jpg   California Proposition 65 Warning
Stock Number: 34725 TE
  Be the first to review this item
$19.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Microprocessor controlled load tester for chargers & Amp Hours/Watt Hours testing of batteries.
Displays Actual Values, Test Values and Error codes
Tester Power: 12VDC@ >0,5A External power supply. ( Not Included)
Max Load Power: 60W (VxA)
(9.99A max @ 6V, 3.00A max @ 20V)
Discharge Current: 0.20-9.99A Digital Pot Resolution: 0.1 or 0.01A
Current Error: 0.7% -0.01A max
AH Capacity Error: 0.5A 2.5%/ 2A 1.5%/ >5A 1.2%
Adjustable WH/AH Testing Range: 999.9Ah or 9999Wh max, Auto terminate when set value reached
Discharge Voltage: 1.00-30.00V
Voltage Measurement Error: 1% + - 0.02V max
L: 4-1/4" O/A W: 2-3/4" H: 2-1/8" WT: .5
