Digital Storage Oscilloscope , Arduino Nano V3 Based


Digital Storage Oscilloscope , Arduino Nano V3 Based
Stock Number: 31250 TE
  Be the first to review this item
$129.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

To inquire, contact:

Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.



SHARE

     Email this to a friend

Detailed Description

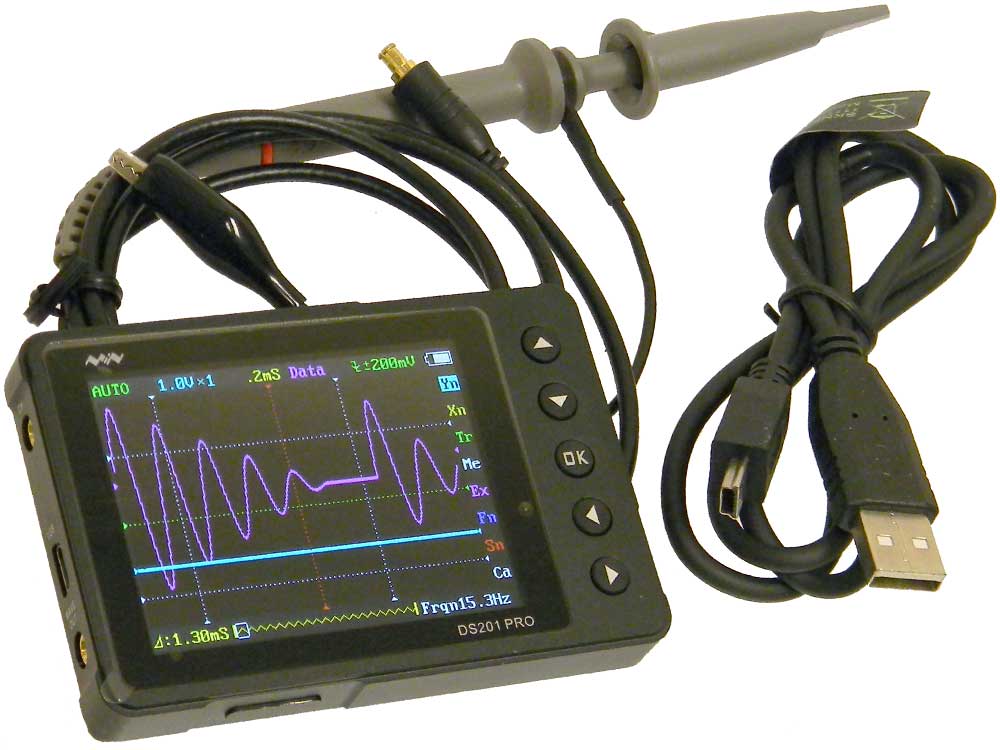

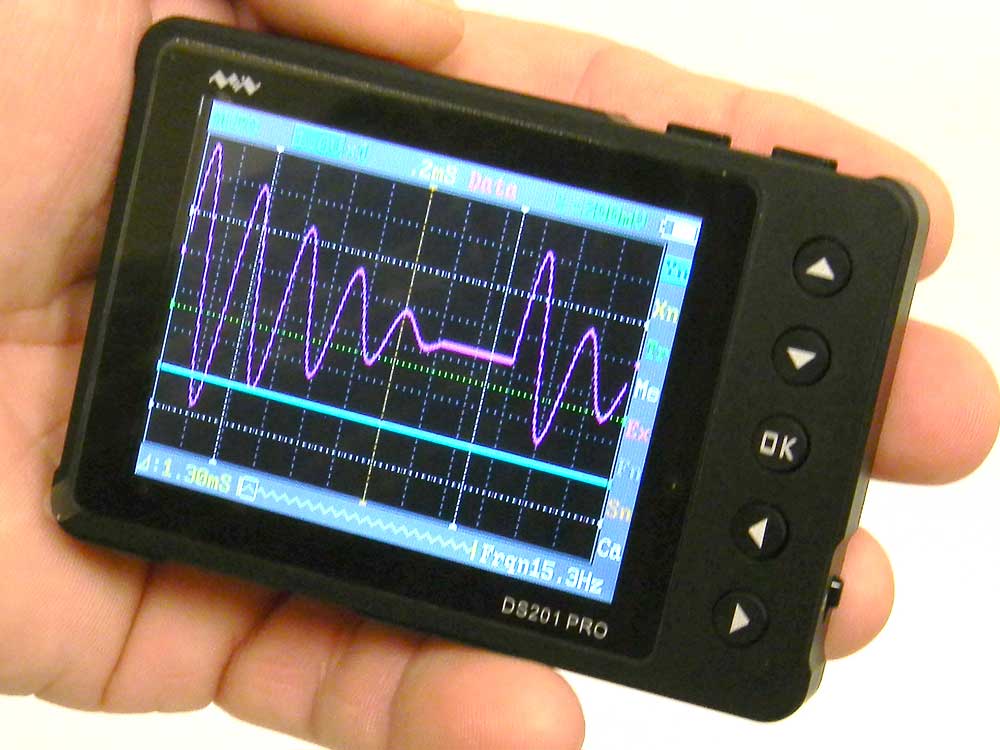

Arduino Nano V3 DS201 Pro Digital Scope
No toy here; this is a serious, compact & easy to use, pocket 32 Bit Single Channel Digital Storage Oscilloscope based on the ARM-M3 Arduino Nano Controller.
Features:
Metal case
10Hz to ~1MHz square wave generator.
Horz. & Vert. Markers
Connectors: MCX Female for probe & Square Wave
Generator
USB port for Software upgrades & Battery charging.
320X240 Color 2.8in LCD display
Analog Bandwidth: 0-200KHz
Sample Rate: 1MSamples/Sec @ 12 bits
Memory Depth: 4096 points
Horiz. Time base: 1uS/div. to 10sec./div.
Vert. Sensitivity: 10mV/div to 10V/div. (1X Probe)
0.5V/div to 100Vdiv. (10X Probe)
Coupling: DC
Trigger: 6 modes: Off, Auto, Norm, 1 Shot, Scan, Fit
Adjustable Lead or Falling Edge
Input: 80V DC+ACp/p Max (1X Probe)
Power: 3.7V/500mAH LiPo battery
Includes: Probe (1x/10X), soft cloth case, USB Cable
L: 3-5/8” W: 2-3/8” D: 1/2” WT: .6
Spare Probe: Order 31249 TE

View PDF Data Sheet


California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
