DC PWM Motor Speed Control 5A, 150W, Snap-in


DC PWM Motor Speed Control 5A, 150W, Snap-in
Images/36388-large.jpg Images/36388-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36388 MD
  Be the first to review this item
$9.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

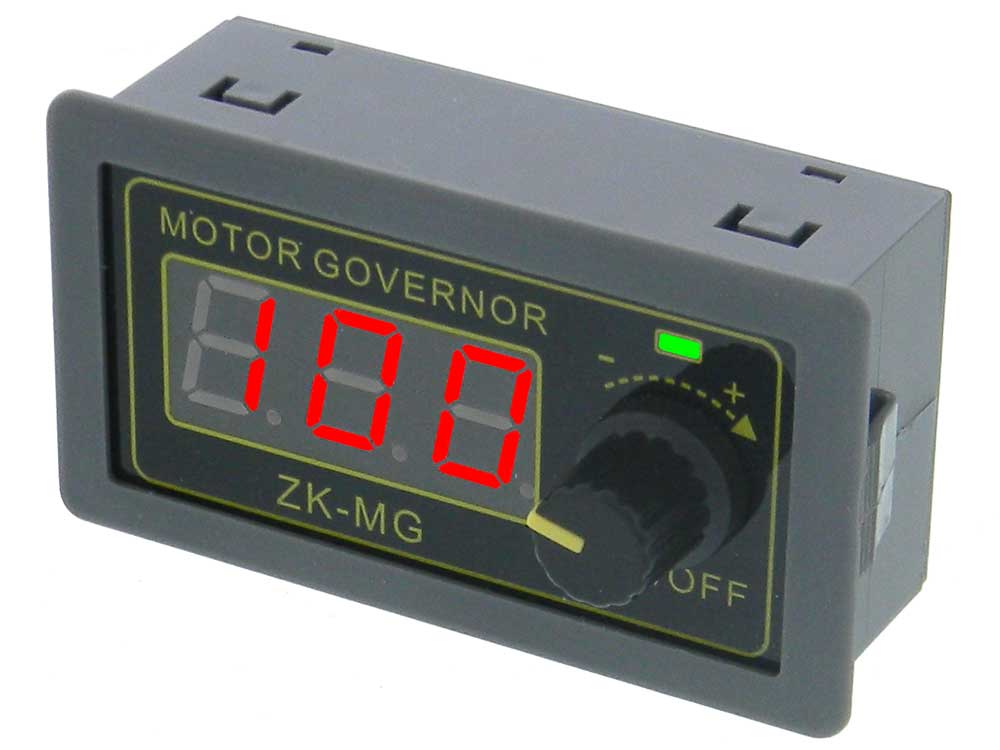

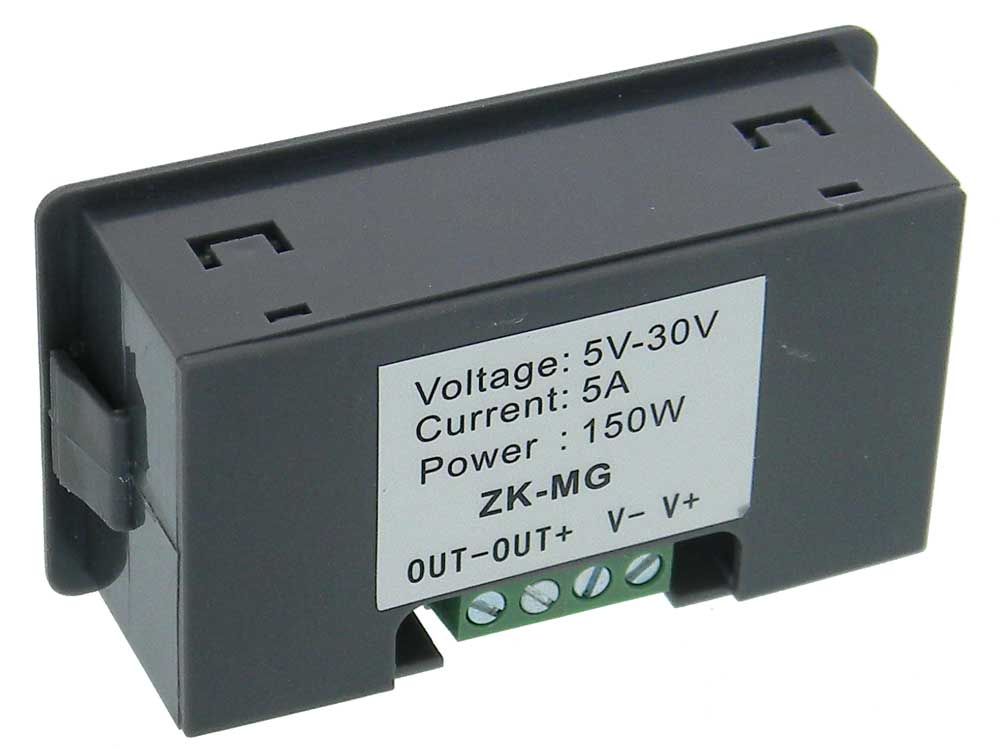

Snap-in, High-power PWM DC motor speed control with front panel output ON/OFF, Soft start, adjustable Duty Cycle & Frequency.
Retains all function settings with power off.
Input: 5V-30VDC
Rated Current: 5A 15 Peak
Power:150W(Max)
Frequency:1KHz-99KHz
Frequency Accuracy:1%
Frequency Resolution:1KHz
Duty Cycle:0%-100%
Duty Cycle Resolution:1%
Cutout: 77mm x 40mm
W: 79mm H: 43mm D: 40mm WT: .14
