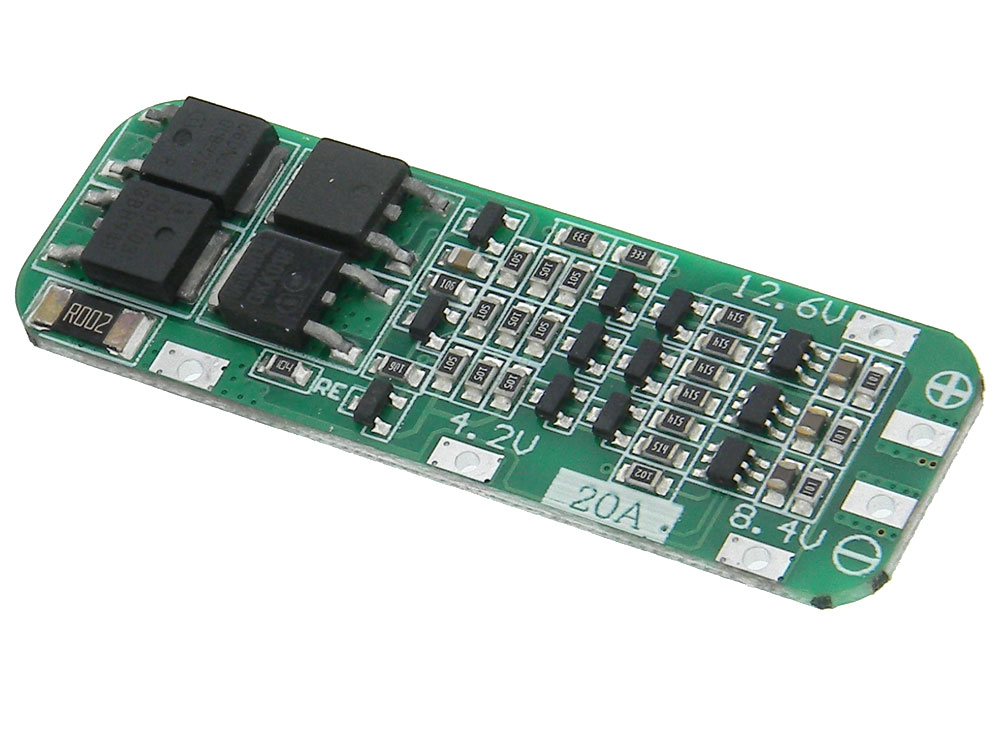

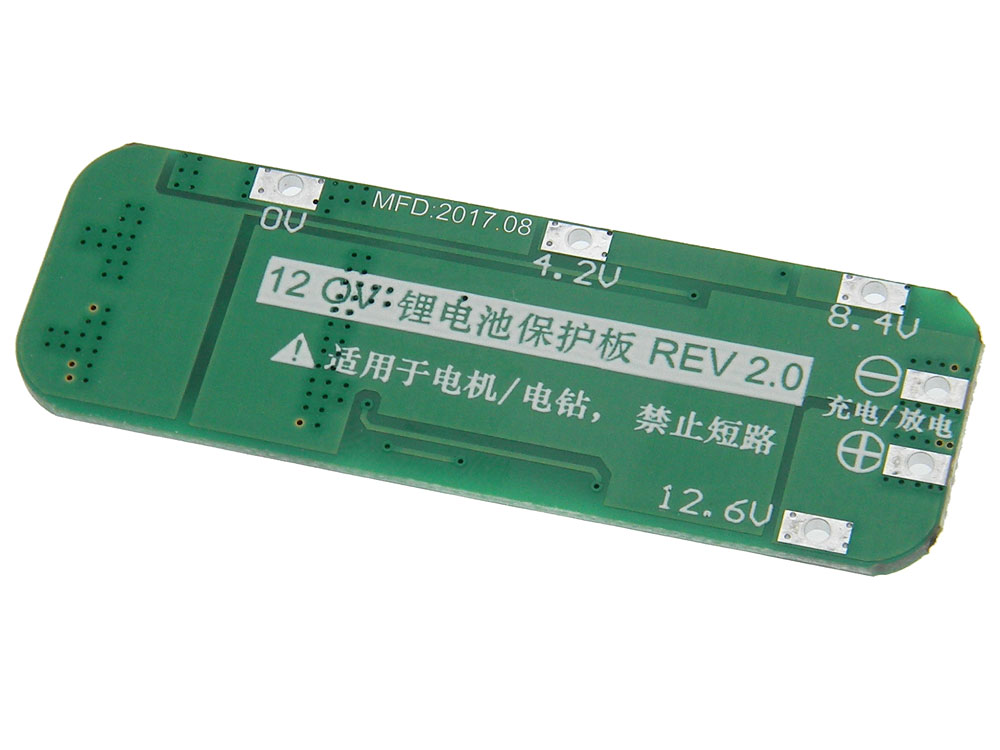

Charge / Discharge Protection Board for 12V LiPo Batteries


Charge / Discharge Protection Board for 12V LiPo Batteries
Images/36842-large.jpg Images/36842-1.jpg   California Proposition 65 Warning
Stock Number: 36842 BT
  Be the first to review this item
$2.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Module for controlling the charge & discharge of 3 series connected LiPo cells with a nominal voltage of 3.6V/3.7V ea. (18650, 26650 etc).
NOTE: Always start witth fresh batteries from same Mfg. and rating.
Charging Voltage: 12.6V-13.0V
Continuous Discharge Current: 20Amax
Continuous Charge Current: 10Amax
Maximum Charging/Discharging Power: 252W
Quesicent Current: ~ 25uA
Over Charge Protection: ~ 4.25V
Auto Recovery: ~4.15V
Over Discharge Protection: ~2.5V
Auto Recovery: ~3.2V
L: 2-5/16" W: 13/16" H: 1/4" WT: .1
