Boost Converter, Adj. 4-35V with Meter


Boost Converter, Adj. 4-35V with Meter
Images/32051-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32051 PS
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$7.95
$4.95
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

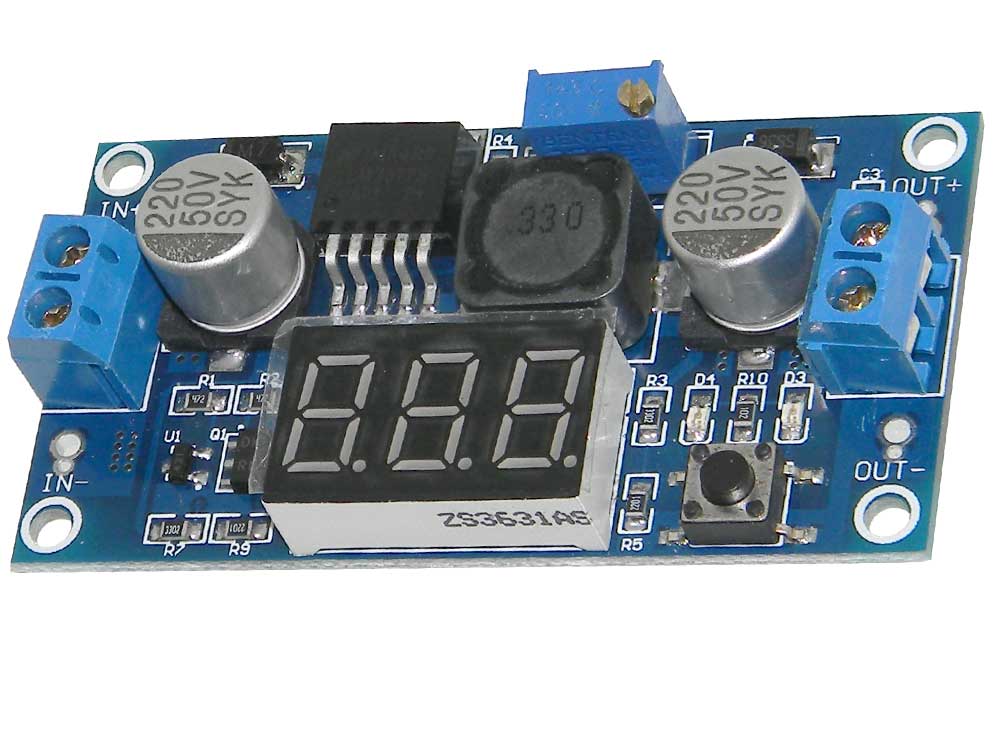

Non Isolated, Step up (Boost) adjustable Converter with In/Out Voltmeter. Uses a LM2577 Chip. Onboard switch for selecting Input or Output readout on meter. Hold switch 3sec. to turn the meter off.
Solder/Terminal strip In/Out.
Input: 3-34VDC
Output: 4-35VDC
Rated Current: 2.5A Max.
Display: 3Digit Red 3/8” LED
Resolution: +-0.1V
Notes: Input must exceed 4V for the Display to function
Output Voltage setting must be higher than Input
Input current increases as the In/Out Voltage difference
Increases.
Heatsink needed for input or output exceeding 10W
L: 2-5/8" W: 1-3/8" H: 1/2” WT: .04

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Used in pulsed mode at its limit:
Driving an SSR pulsing a 20W LED it held its boosted voltage amazingly well. The load varied from 0 to 100% with 50% duty cycle, so average power 10W. At that level it got warm as expected. Any more power sink it or use the excellent 50 watt booster. Meter and screw terminals super handy breadboarding.
- Alan, KS
