Battery Tester for Toys and Model Cell Packs


Battery Tester for Toys and Model Cell Packs
Images/36375-large.jpg Images/36375-1.jpg Images/36375-2.jpg   California Proposition 65 Warning
Stock Number: 36375 TE
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$8.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

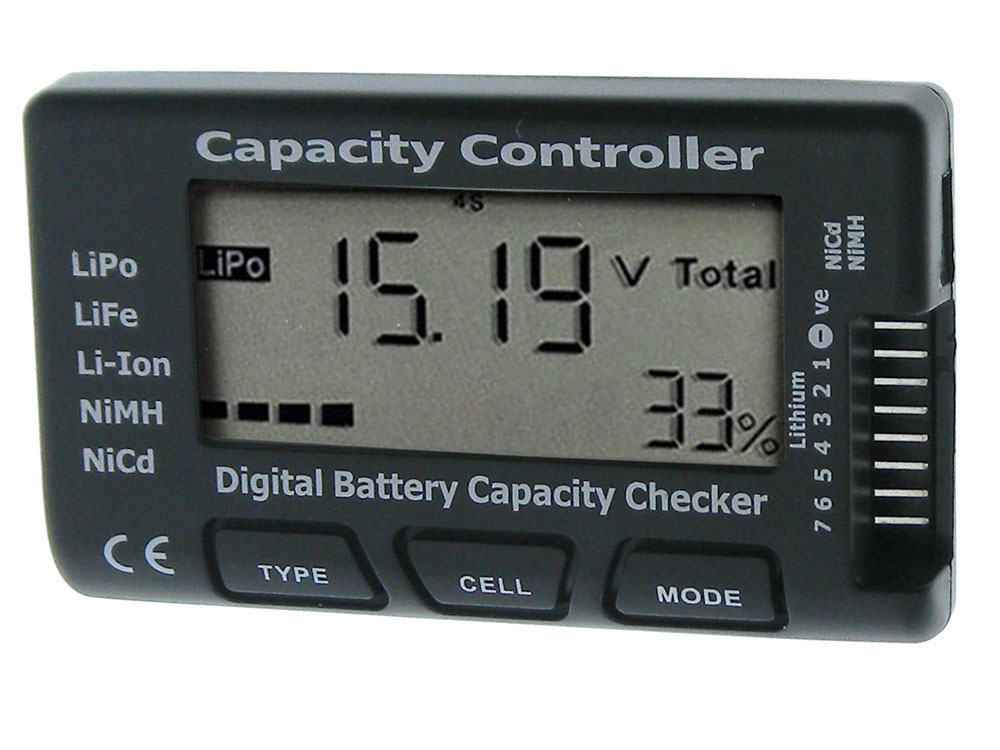

Battery tester for Lithium & Nickel Battery packs used in Toy & Models.
Selectable: LiPo, LiFe, L-Ion, NiCd & NiMh types
Connections: Mates not Supplied (Should be on your Pack)
Nickel: 3 Pin 0.1" Pitch

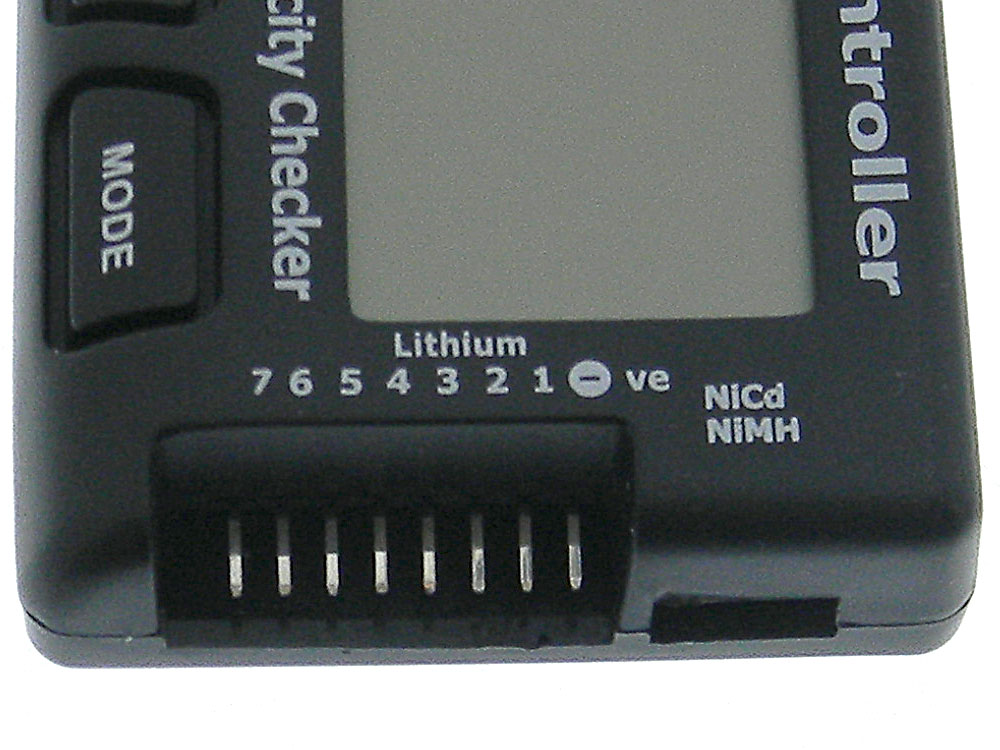

Lithium: 8Pin 0.1" Pitch (JST EH/XH type)
Selectable # Cells:
Lithium: 2-7 Cells
Nickel: 4-7 Cells
Tests Performed:
Lithium: Total Pack Voltage, Total Capacity (0-99%),
Depending on Pack cell access: Individual. Cell Voltage, Lowest Cell Voltage, Highest Cell Voltage, Difference Between High & Low Cell Voltage,
Nickel: Only Total Voltage
Range:
Lithium: 0.5-30V
Nickel: 3.6-15.00
Resolution: 0.001/0.01V
W: 3-5/16" H: 2" D: 5/8" WT: .15

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Very handy, does not have the New Balance Function
Snagged this on sale and I use it all the time with my RC drone batteries. Works great for measuring, but the reason for only 4 stars: the one I received is a V1 and lacks the New Balancing Function mentioned in the data sheet, but apparently only available on the V2 there are check boxes on the outer package, they were not checked. The V2 is available, but at higher prices, elsewhere. I have compared the results with a good DVM and it is accurate. Being able to see the delta from best to worst cell in a pack is handy. Easy to read display. Balancing would have been nice, but I have other equipment which can do that.
Neal Friedman
