Arduino Compatable MEGA 2560 R3-2014 Upgrade


Arduino Compatable MEGA 2560 R3-2014 Upgrade
Images/35643-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 35643 MP
  Be the first to review this item
$19.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

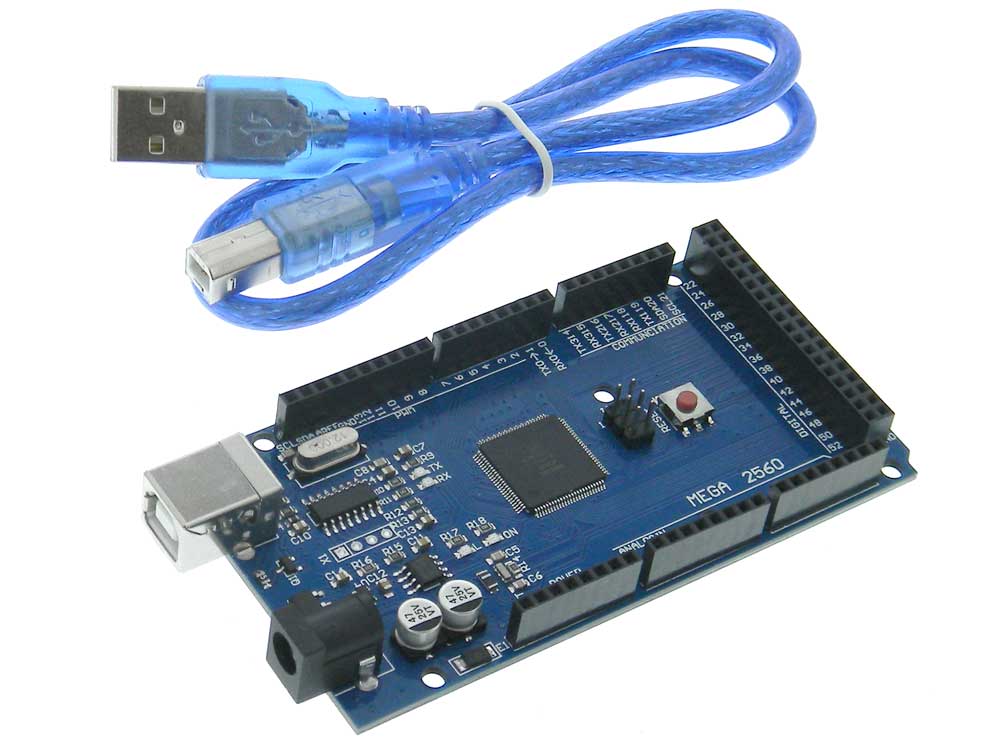

The Mega 2560 R3-2014 is a updated version microcontroller board based on the ATMEGA 256016u and the CH340 USB comm chip. It has 16 analog inputs, 4 uarts (hardware serial ports), 16 MHz crystal oscillator, a USB connection, a power connector, an ICSP header and a reset button. Contains everything necessary to support the microcontroller; Simply connect it to a computer with the USB cable or power it with an AC-DC adapter. The Mega is compatible with most of the shields designed for the Duemilanove or Diecimila.
ATMEGA2560-16u microcontroller
Flash Memory: 256 KB (8 KB used by bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock speed: 16 MHz
Operating Voltage: 5 V
Input Voltage (recommended) 7-12 V
Input voltage: 6-20VDC
Digital I/O: 54 (15 provide PWM output)
Analog Inputs: 16
I/O Pin Current: 40 mA
Current for 3.3 V pin: 50 ma
USB port: Type B Female
Power Port: 5.5mm X 2.1mm Coaxial Power Jack
Includes 18in. USB cable
L: 4-3/8” O/A W: 2-1/8” H: 1/2” WT: .15
