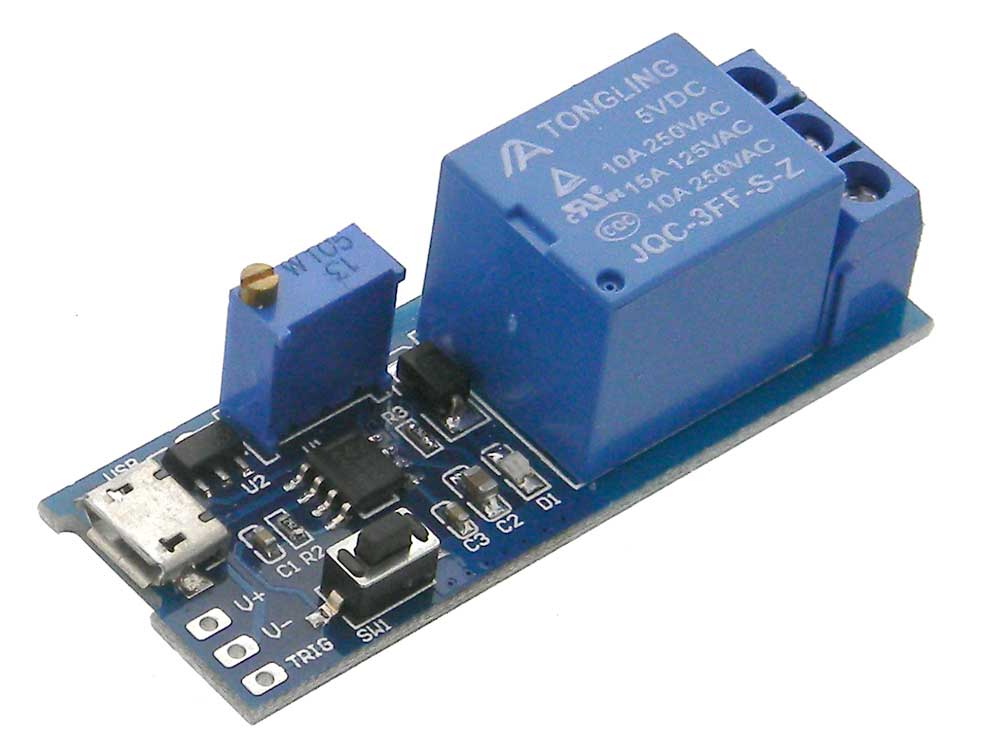

Adjustable Triggered Delay Module 0-24 Seconds


Adjustable Triggered Delay Module 0-24 Seconds
Images/35236-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 35236 MP
  Be the first to review this item
$3.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Adjustable triggered timing module based on the 555 IC. Momentary ground (Low) to trigger input starts timing cycle by energizing relay for the set time when the relay releases.
Power: 5-30VDC
NOTE: Onboard Regulator will require a heat sink for >12V Power
5V Only on the USB input
Current: <60mA Relay energized
Range: ~0-24 Seconds
Trigger Voltage; 0-5VDC Only
Relay: SPDT
Contacts: 10A 125/250VAC/30VDC
Terminal Strip for Relay Contacts
Solder Holes for Power (5-30C) and Trigger Input
USB Micro B for 5V only Power.
L: 2-1/8" W: 13/16" H: 3/4" WT: .04
