AC Panel Meter, LCD Display 40-400 Volts & 0-100 Amps


AC Panel Meter, LCD Display 40-400 Volts & 0-100 Amps
Images/37212-large.jpg Images/37212-1.jpg   California Proposition 65 Warning
Stock Number: 37212 ME
  Be the first to review this item
$17.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

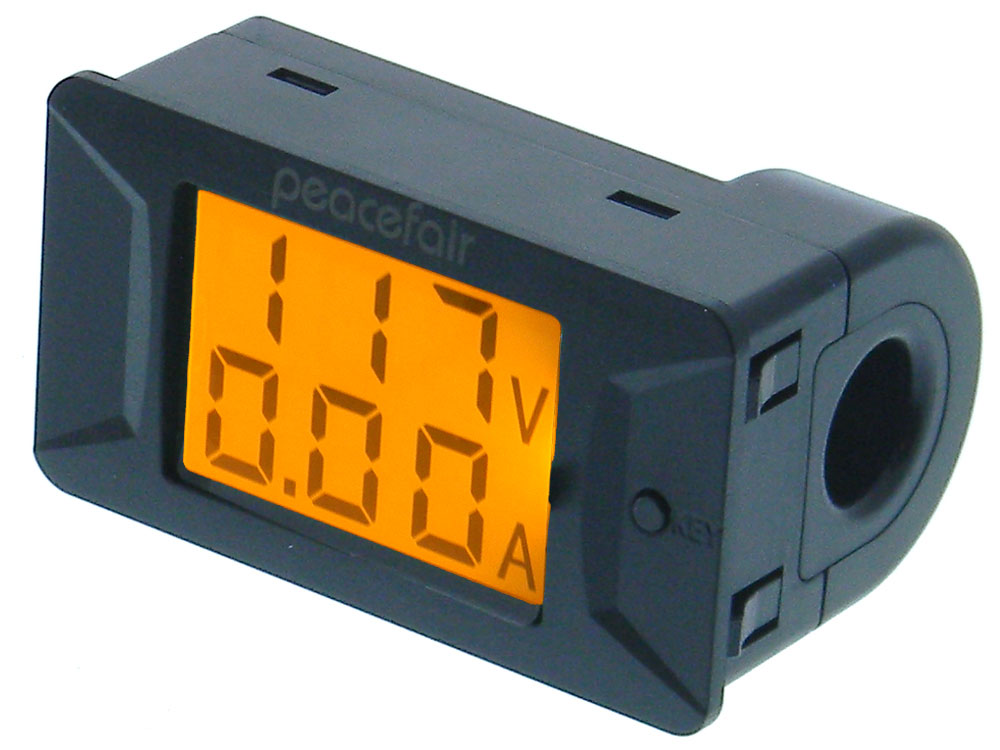

Snap-in, panel mount AC Volt & Amp meter.
LCD Display with Orange Backlight
Character Height: ~12mm
Input Voltage: 40-400VAC 50/60Hz SINE WAVE ONLY
Resolution: <100V: 0.1V / > 100V: 1V
Accuracy: +-1% +-2LSD
Input Amps: .02A-100A
Resolution: Amps: <10A : .01A/ <100A : 0.1A
Accuracy: +-1% +-2LSD

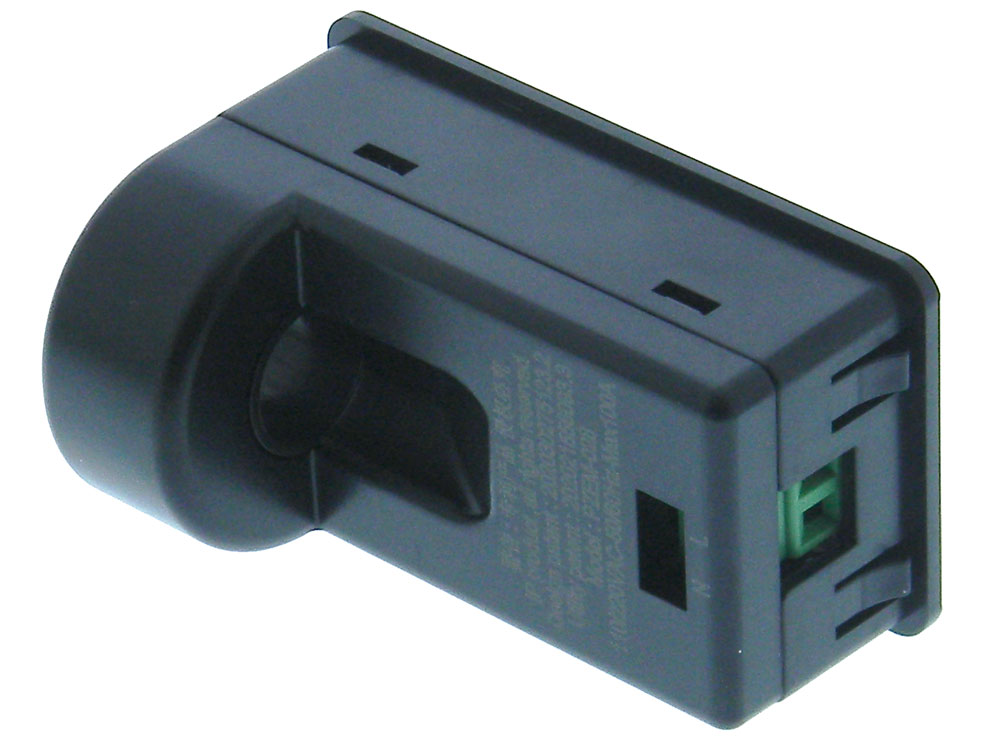

Terminal Strip for Connections
Built in Current Transformer: I/D: 14mm
Meter Cutout: 69mm X 37mm
W: 2-7/8" H: 1-9/16" D: 1-3/4" WT: .2
