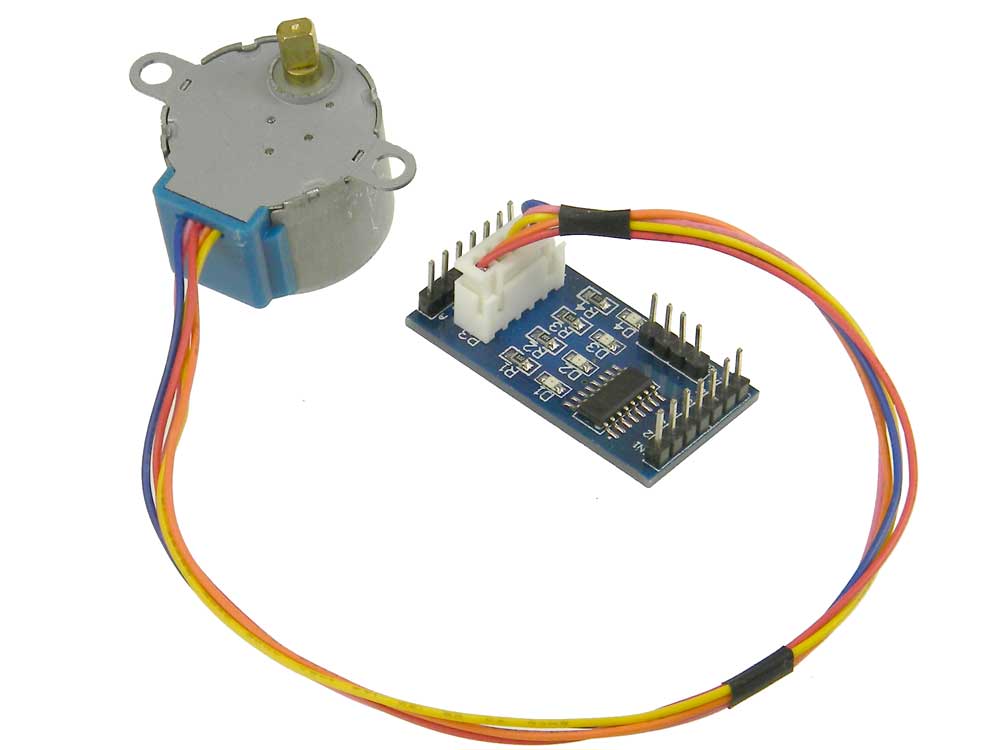

5V Gearhead Stepmotor and Driver Board ULN2003 for Arduino


5V Gearhead Stepmotor and Driver Board ULN2003 for Arduino
Images/31592-LARGE.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 31592 MP
  Be the first to review this item
$4.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Designed for Arduino or other Micro-controllers
Combination of driver board & a small NEMA 11 gearhead Stepmotor.
Driver Board utilizes the ULN 2003 IC. (www. ti.com) containing 7 high current drivers all brought out to a Output header. Outputs 1-4 are also connected to the motor header & Has four LED activation indicators on outputs (A - D) for motor phase.
Motor: P/N 28BYJ-48
Coil: Unipolar/5 Lead, 200 ohm
Step: .0879deg/step (5.625 Deg/step , 1/64 ratio)
Rate: 500pps max
Hold Torque: >350g-cm
20mm long X 28mm Dia. with 5mm dia. double “D” X 9mm brass shaft. 8" motor leads, 2 mounting ears
Board: All Outputs available on additional header. Header for selecting internal/external Motor power.
Power: 5-12VDC
Drive Current: 300mA/Peak 500mA
Signal: TTL logic
7 Pin .1in. Pitch Headers for Input & Output
5 Pin XH-5P socket for connection to Motor
4 Pin .1in. Pitch Header for Power
Set Includes:
Freeware available at arduino.cc.en and others
L: 1-5/8” W: 7/8” -H: 1/2” WT: .09

View PDF Data Sheet
