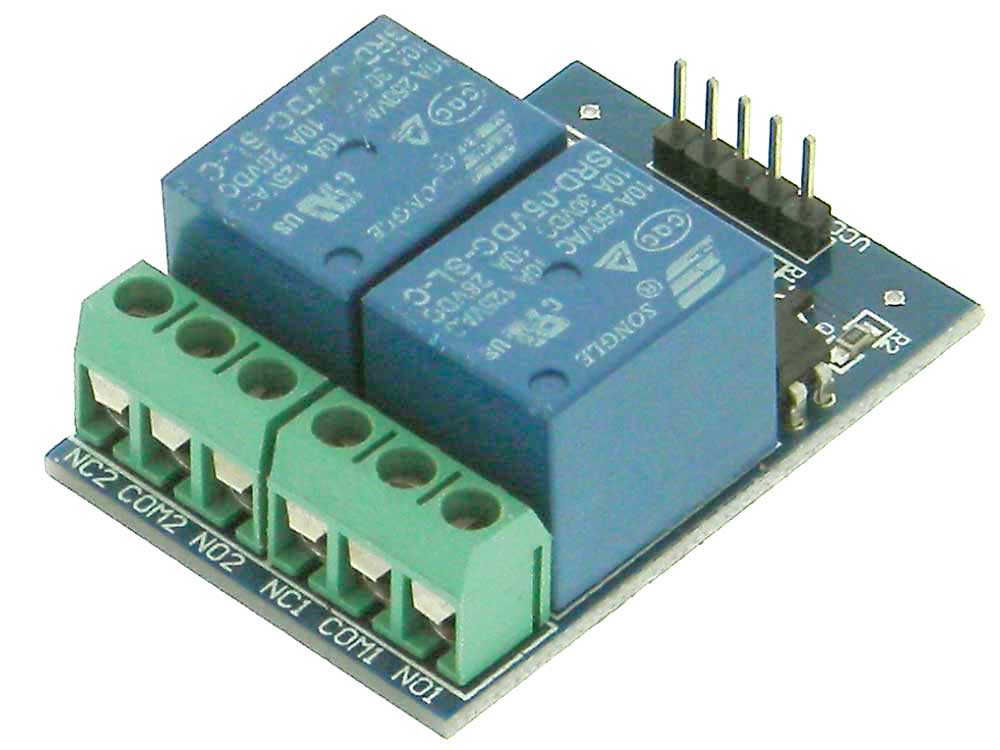

5V Dual SPDT Relay Board for Arduino


5V Dual SPDT Relay Board for Arduino
Images/32707-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32707 MP
 Review Average:
 Number of Reviews: 2
 View Reviews | Review this item
$3.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Opto Isolated input, Dual Relay module for any project. Easily driven by an Arduino or other micro controllers.
Freeware available through www. arduino.cc.en & others
LED indicatorsfor input activity.
Power: 5VDC @ 80mA/channel energized
Select either Power from CPU or external.
Input: .1in. Pitch header with Vcc, Gnd, and Input
Ground energizes relay(s)
Output: Terminal strips
L: 1-13/16” W: 1-5/16” H: 3/4” WT: .06

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Proper wiring!!
This is a great little relay board but make sure you follow the wiring below! GND to Arduino GND COM to any output pin. Pull high to activate the board in1 to and output pin in2 to any output pin VCC to 5V arduino supply
- Noah Woodward, FL

Dual Pump Controller
This small relay board was ideal for my need of a dual pump controller. I am using it with an Arduino to pump liquids for a batch mix, it works great. The small relays control the coils in the motor starters.
- David L. Freeman, LA
