5M Pixel Raspberry-Pi Night Vision Camera


5M Pixel Raspberry-Pi Night Vision Camera
Images/34985-large.jpg   California Proposition 65 Warning
Stock Number: 34985 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$26.95
$18.95
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

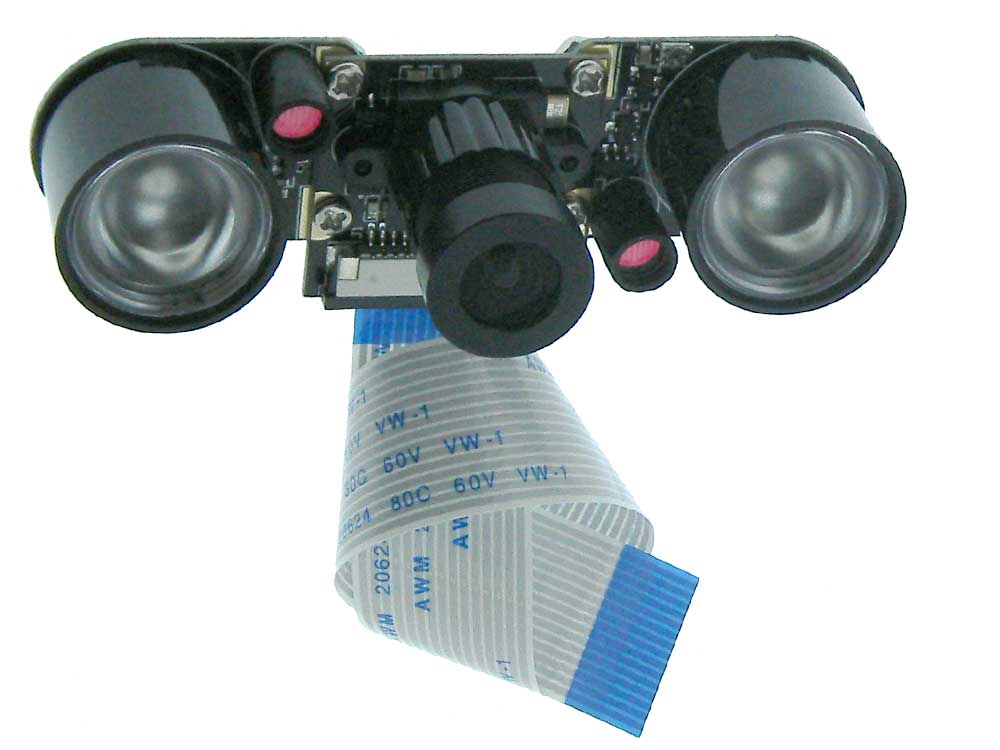

Adjustable Focus, Raspberry Pi 5Megapixel Camera Module with infrared LED illumination. Supports all revisions of the Pi except "Zero"
ASSEMBLY REQUIRED
Camera parameters:
Sensor: OmniVision CMOS OV5647
Size: 1/4 inch
Aperture (F): 1.8
Focal Length: 3.6mm (adjustable)
Field of view angle (Diagonal): >60 degree
Resolution: 2592 X 1944 Static
1080p @ 30fps/ 720p @ 60fps
I/R Specifications:
Onboard photo sensors for auto turn on (Adjustable threshold)
Output: ~2X3W
NIR @ 850nm
Range: Best ~3m
Attaches to & powered by the Camera
NOTE: Pi power adapter must be capable of supplying >2A to the LEDs
Overheating of the Pi possible so cooling recommened.
LED(s) will get HOT it is recommended that heatsink (s) be attached to board backs.
Camera:
SQ: 1" D: 1-1/8"
Assembled: W: 2-7/8" HT: 1" D: 1-1/8"
WT: .08

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Compatible with most raspberry pi applications
This camera, so far, has worked on every program I throw at it.
