3.3, 5, 12V Fixed + 1 Adj. Output Power Supply


3.3, 5, 12V Fixed + 1 Adj. Output Power Supply
Images/38245-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 38245 PS
  Be the first to review this item
$11.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

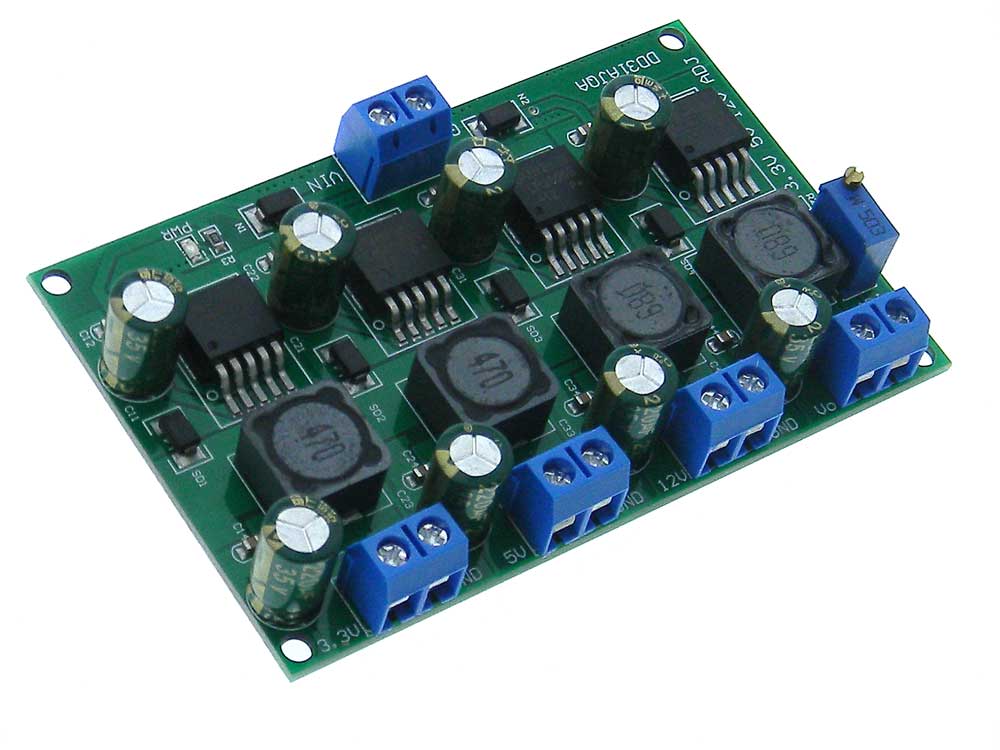

3 Fixed & 1 Adjustable Quad Output Power Supply module with over Current, Temperature and Reverse Polarity Protection.
Outputs can be used independently or in unison.
NOTE: See Minimum Input voltage for each Output
Input & Outputs share a common Minus (- /Gnd)
Input/Output Requirements:
3.3V Output: Input 4.5Vmin-30Vmax
5V Output: Input 6.5Vmin-30Vmax
12V Output: Input 13.5Vmin-30Vmax
Adjustable Output 2-28V: Input ~2Vmin Higher than Output Setting
Single Output: 3A Max
Total Output: 50W Maximum
Connections: Terminal Strips
L: 88mm (3-1/2") W: 55mm (2-1/4") H:15mm (5/8") WT: .13
