3-Axis Gravity - Accereration Sensor Module - I2C-SPI


3-Axis Gravity - Accereration Sensor Module - I2C-SPI
Images/36667-large.jpg   California Proposition 65 Warning
Stock Number: 36667 MP
  Be the first to review this item
$2.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

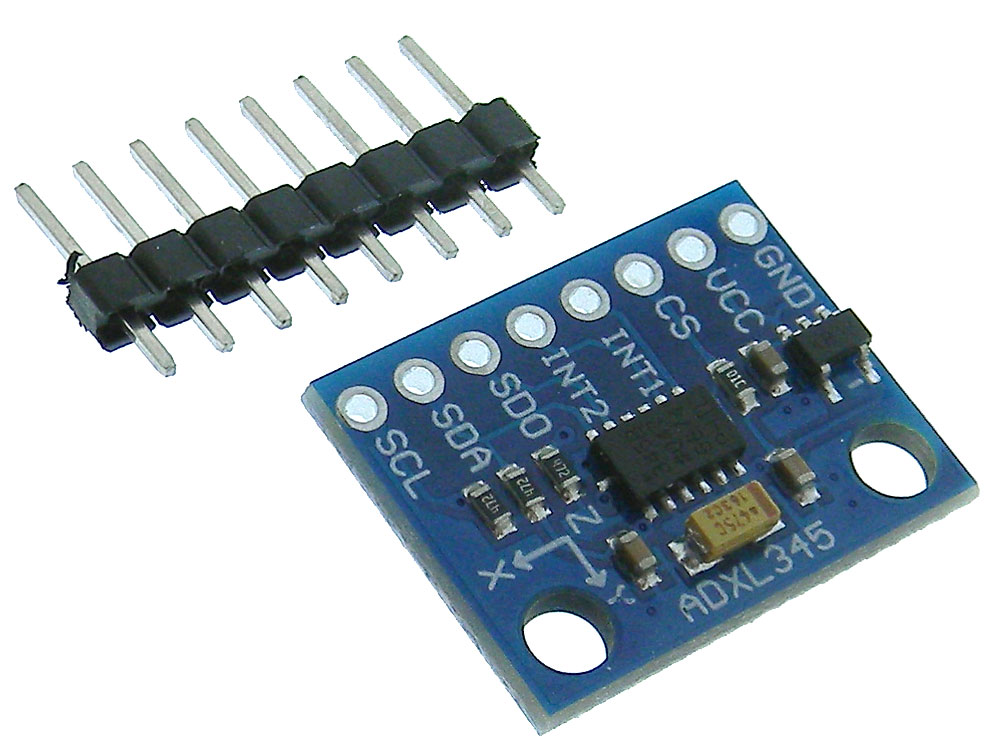

Sensor board for micro-controllers using the ADXL345 accelerometer IC with high resolution (10-13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit 2s complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. Measures inclination changes less than 1.0°. Measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.
Detects lack of motion as well as motion by comparing the acceleration on any axis with user-set thresholds. Functions can be mapped individually to either of two interrupt output pins.
NOTE: Requires Download or Writting of Code for Operation
Power: 5VDC (Onboard 3.3 Regulator)
Current: 170uA Max
Ranges: selectable ±2 g, ±4 g, ±8 g or ±16 g. via serial command
Resolution: 3.9 mg/LSB
Inclination : +-~80° (Sine response)
Tap Detection: Single or Double
Activity/inactivity monitoring
Free-fall detection
10,000 g shock survival
SPI (3- and 4-wire) and I2C digital interfaces
I2C Address (depends on ALT ADDR) 0x1D, 0x53
Bandwidth selectable via serial command
Operating temperature: -40°C ~ 85°C
L; 13/16" W: 5/8" H: 1/8" (No Header) WT: .02
Useful Links:
http://wiki.sunfounder.cc/index.php?title=ADXL345_3-Axis_Digital_Acceleration_of_Gravity_Tilt_Module_(GY-291)
https://www.best-microcontroller-projects.com/adxl345.html
http://qqtrading.com.my/3-axis-accelerometer-acceleration-gy-291-adxl345
https://www.analog.com/media/en/technical-documentation/application-notes/AN-1057.pdf
