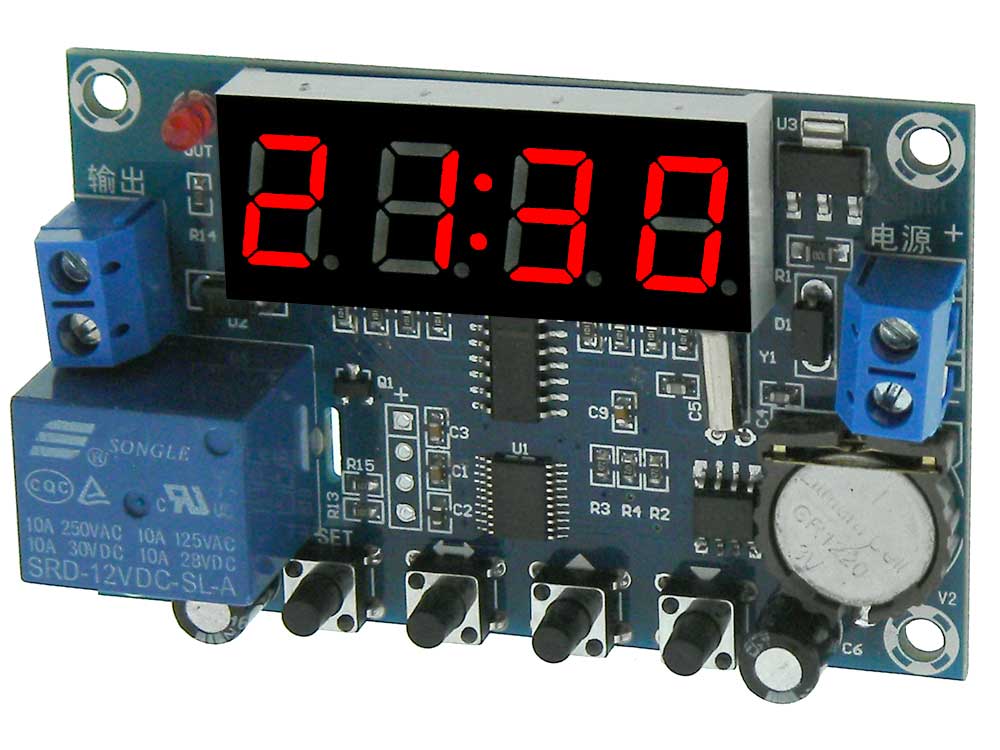

Crystal controlled, Adjustable 24 hr. (No AM/PM) Clock/Timer that allows you to set up to 3 “ON” & “OFF” periods of a SPST-NO relay. Retains settings with power off (internal coin CR1220 battery Supplied)
Note: Internal battery will not operate relay or display.
Power: 12VDC external @ <100mA relay energized
Accuracy: ~1sec/24hr
Resolution: 1minute
Contacts Rated: 10A @ 250VAC/30VDC
LED Status Indicator
Display: 4 digit + Colon, 15mm height Red LED
Terminal Strip for Power and Relay contacts L: 2-3/4” W: 1-13/16” T: 7/8” WT: .08
