20 Dual LED 36 Lumen Module String, Cool White,12VDC,


20 Dual LED 36 Lumen Module String, Cool White,12VDC,
Images/35706-large.jpg Images/35706-1.jpg   California Proposition 65 Warning
Stock Number: 35706 OP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$9.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

12V, +-.5V DC input Only.

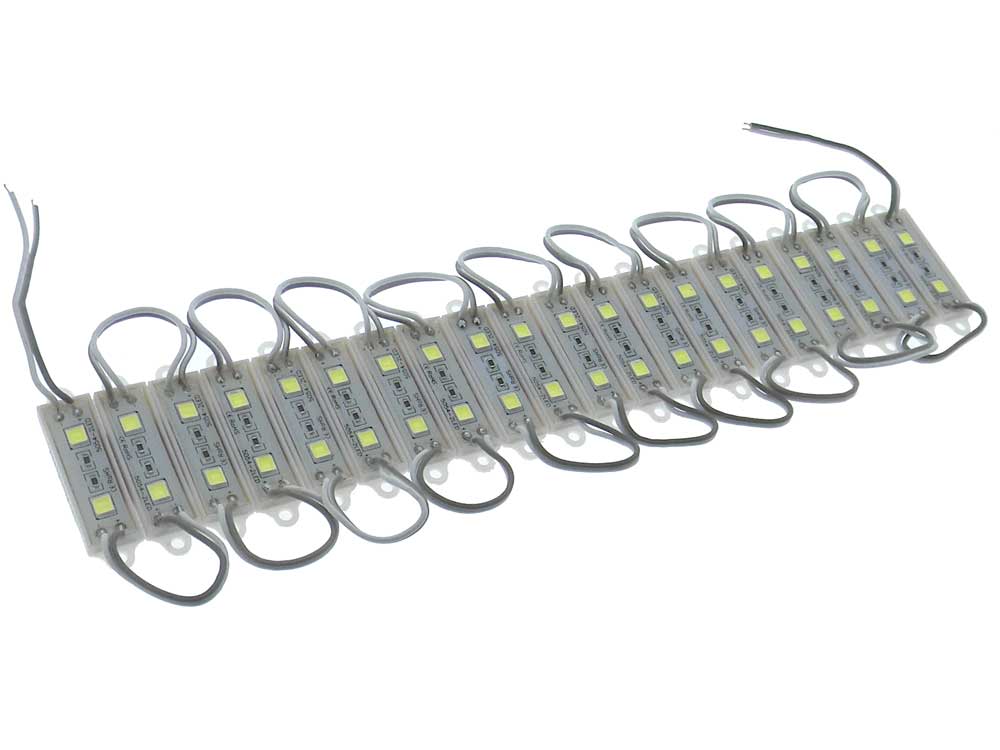

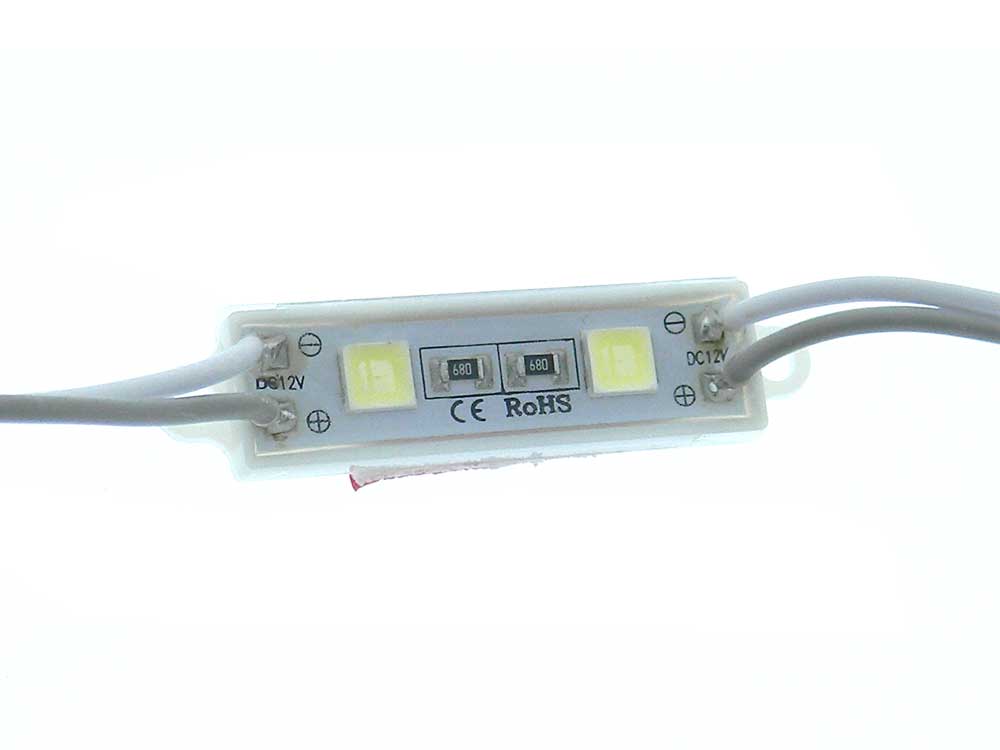

String of 20, ~36 Lumen Super Bright White LED modules featuring: 2 high lumen LEDs/module.
IP65 rated Plastic Case with clear epoxy potting
2-1/2" leads between modules
Operating Voltage 12VDC
Current: ~.8A (<50mA/module)
~120 deg. beam angle.
Color Temp:~6500 (Cool White)
Peel-n-stick backer and end mounting ears.
CE/RoHS Compliant
Module L: 1-15/16” O/A W: 7/16” T: 5/32”
L: 82in WT: .14

California Proposition 65 Warning WARNING: This product can expose you to chemicals including arsenic which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Not impressed. Burnt out after only a week
I used four to illuminate my keyboard. After only a week, I noticed a pronounced burning plastic smell. The current-limiting resistors in each COB were blackened, and causing the plastic filler to melt. I replaced the string, and added another 100-ohm resistor in series to get the total current down to about 1/2 amp. Well see how that works out.
Chuck Kirchner
