12VDC Mini Solenoid


12VDC Mini Solenoid
Images/37487-large.jpg Images/37487-1.jpg   California Proposition 65 Warning
Stock Number: 37487 SL
  Be the first to review this item
$4.50

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

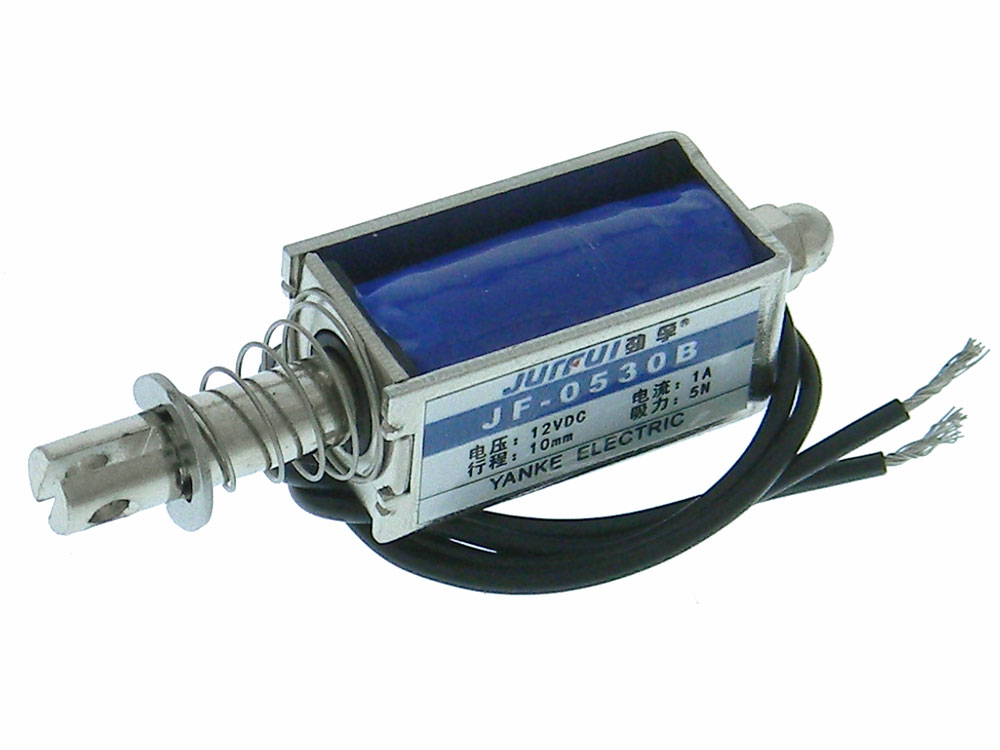

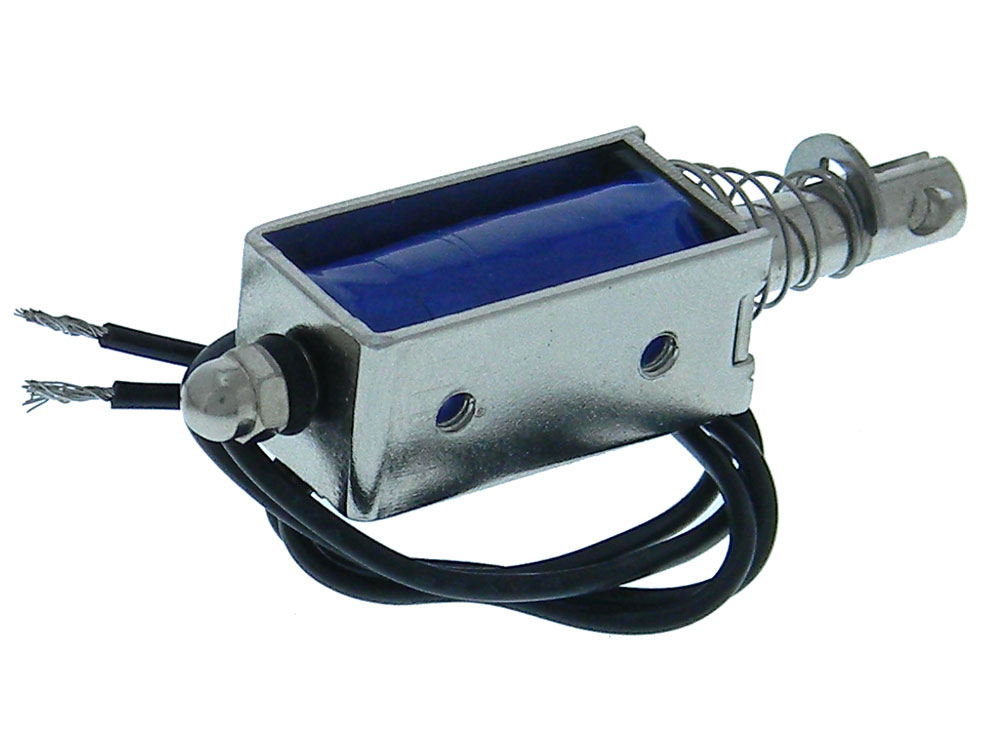

Mini general purpose Solenoid with slotted yoke and spring return..
Coil: 12V @ ~1A
On Time: 5 seconds intermittent duty
Off Time: 60 seconds
Temp. Rise: <65°C
Stroke:10mm
Force: ~5N
Yoke: 20mm x 6mm Dia, Slot: 8mm x 1.6mm
Ambient Temp: -5 to 40°C
Ambient Humidity: 45 to 85%
Leads: 7"
Mounting: 2 x M3-0.5 holes in frame bottom.
