12V 16 SPDT Relay Module for Microcontrollers


12V 16 SPDT Relay Module for Microcontrollers
Images/34349-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34349 MP
  Be the first to review this item
$15.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet

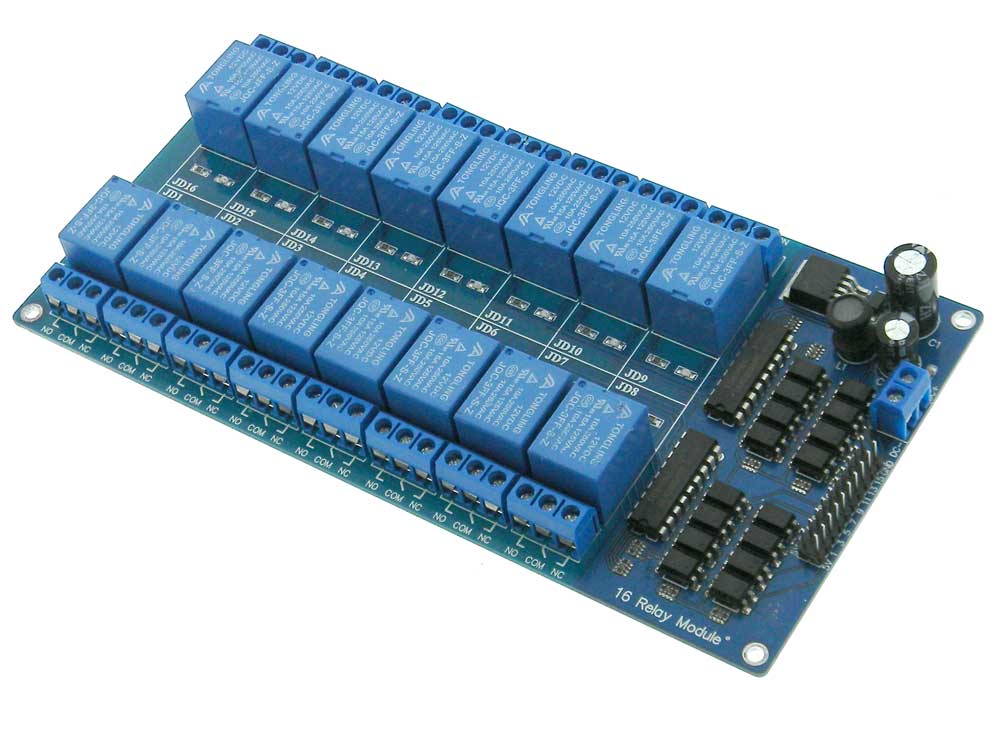

16 SPDT Relay Module for Arduino and other Microcontrollers
16 independent optocoupled SPDT Relays designed to be driven by an Arduino or other micro controllers.
Low on input pin activates Relay
LED status indicator for each relay
Power: 12VDC from external Power Supply
On Board LM2576 Based 12V to 5VDC Power supply
Logic Gnd.from Microcontroller (Common with Relay Power Gnd)
Logic Input: 2 X 10, 0.1in. Pitch header with Vcc, (from On-board supply)
Gnd, and an input pin for each relay.
Connect Input pin and Gnd. to microcontroller
Relay: 12VDC coil
Contacts: SPDT 10A @ 30VDC, 250VAC
Output: Terminal strip for contacts
4 corner mounting holes.
L: 7" W: 3-1/8" H: 7/8" WT: .6
