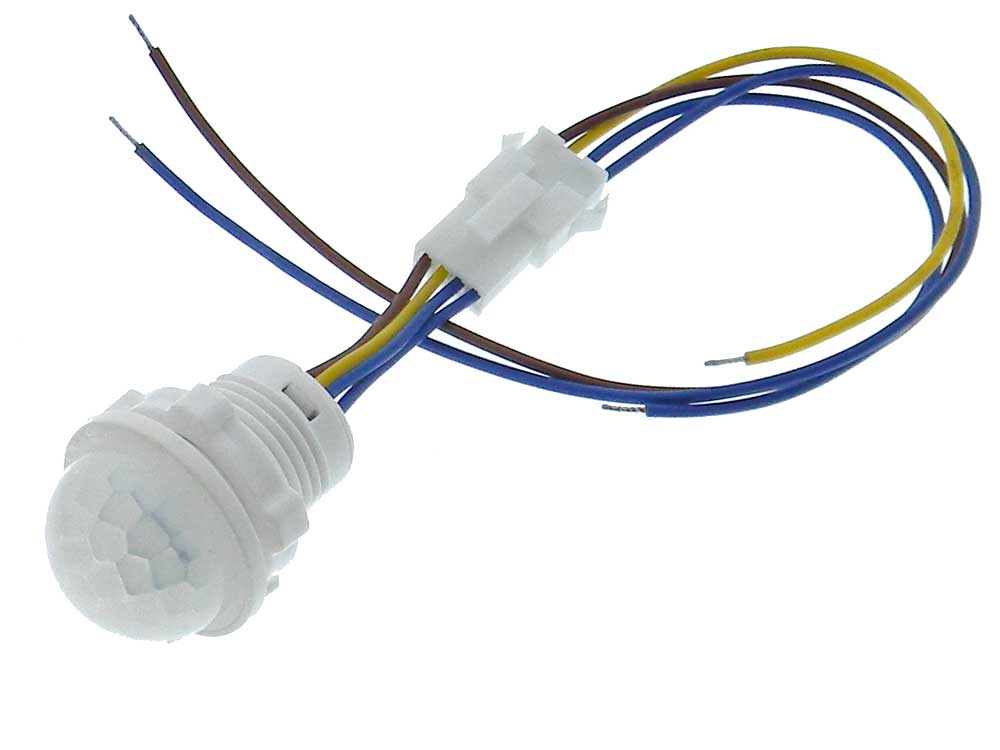

110Vac PIR Infrared Motion Sensor, Switch


110Vac PIR Infrared Motion Sensor, Switch
Images/36211-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36211 SC
  Be the first to review this item
$5.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

General use PIR motion detector designed for human body detection with ambient light detection.
BROWN: Line Input
SHORT YELLOW: Load Line Out
SHORT BLUE: Load Neutral
LONG BLUE: Neutral Line In
NOTE: Long & Short BLUE Leads are connected Internally
Power: 100 to 240VAC 50/60Hz.
Output power: =40W ~2A/4A surge (SCR Output)
Photosensing Setting: =3Lux
Sensing Distance: 4-6m
Time Delay: 40secs On Fixed
Angle Coverage: 110 °
Temperature Using: -10 ° to + 45 °
Standby power consumption: <0.1W
Body Leads: ~ 1-1/4"
Pigtail Leads: Power: ~7" Line/ ~4" Load:
Mounts in 20mm Hole
DIA: 28nn (O/A) L: 36mm (Body)
