10kg Load Cell with ADC Converter Board for Microcontrollers


10kg Load Cell with ADC Converter Board for Microcontrollers
Images/34723-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34723 MI
  Be the first to review this item
$4.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

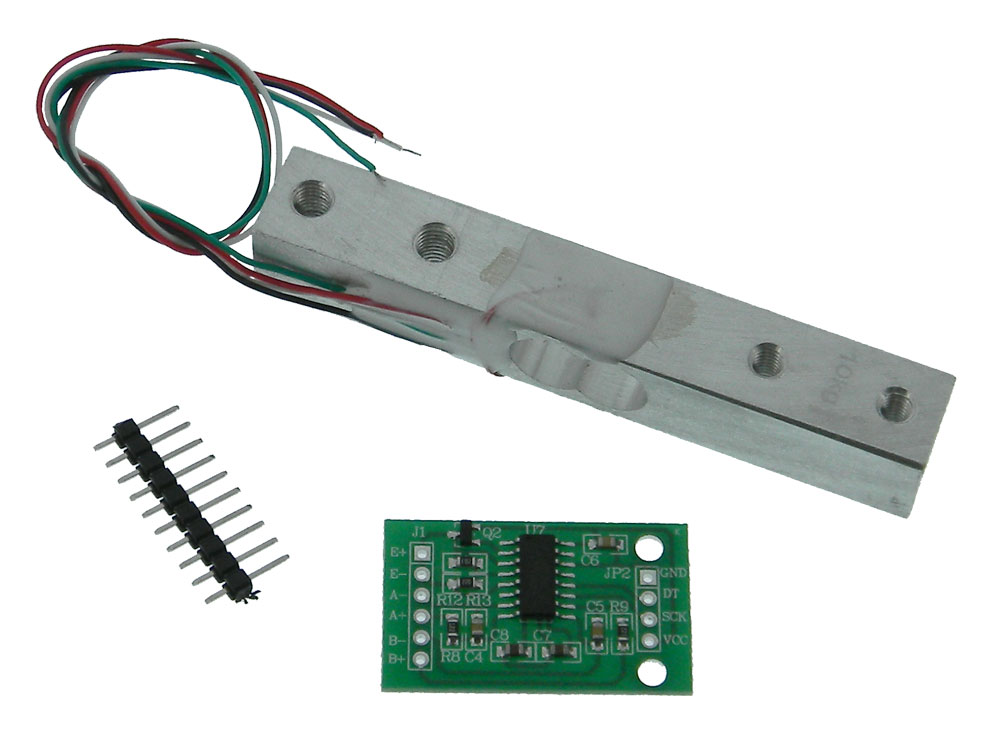

Beam style Load Cell with HX711 based ADC Board for connecting to a Microcontroller.
Sensor Bar: Aluminum
Sensor: Resistive bridge strain gage.
Rated Load: 10kg (Safe Overload: 12kg/ Absolute Overload:15kg)
Resistance: 1K
Sensitivity: 1mV/V
“0” Output: +-0.1mV/V
“0” Drift: .05%F.S./min
Temperature Range: -10~+50deg. C
Wire Leads
Mounting Threads Fixed End: M5-0.8
Mounting Threads Force End: M4-0.7
L: 81mm Sq: 13mm
ADC Board
Chip: HX711 24bit ADC Designed for Bridge Strain type sensors
Power: 2.6-5.5VDC
Interface: Serial Dout & SCK for input to microcontrollers
Connections: Solder Pads or Supplied 0.1 pitch Header (you solder)
L: 1-5/16" W: 9/16" T: 1/8"
WT: .09
