Voice Recorder/Player, 10 Sec, for Microcontrollers
Stock Number: 31073 MI
Detailed Description
Manual or Direct Microcontroller Control

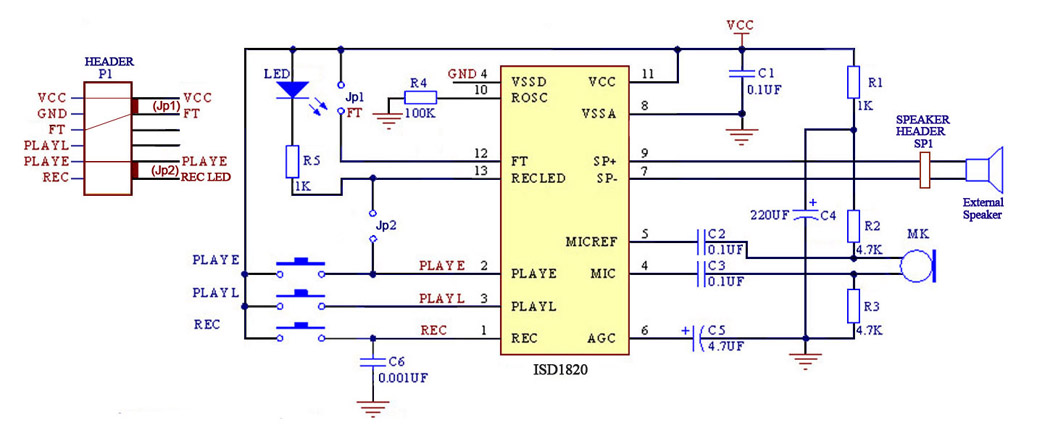

Voice Recorder module based on the ISD18B20 IC. Built-in flash memory holds recording with power off for years. Almost limitless Record/Playback cycles. Feedthrough mode for direct Mike to Speaker use.
Power: 3-5VDC
Record Length: ~10sec
Input: On-board microphone
Output: .5W into 8 ohm speaker
Trigger: Edge transition or voltage level
Modes: Repeat or one shot.
Record LED
12 (2X6) .1in. Pitch Header Control Input
2 Pin .1” pitch speaker connector L: 1-11/16" W: 1-1/2” T: 7/16” WT: .02
