Temperature Measurement DS18B20 Module for Arduino
Stock Number: 31578 MP
Detailed Description

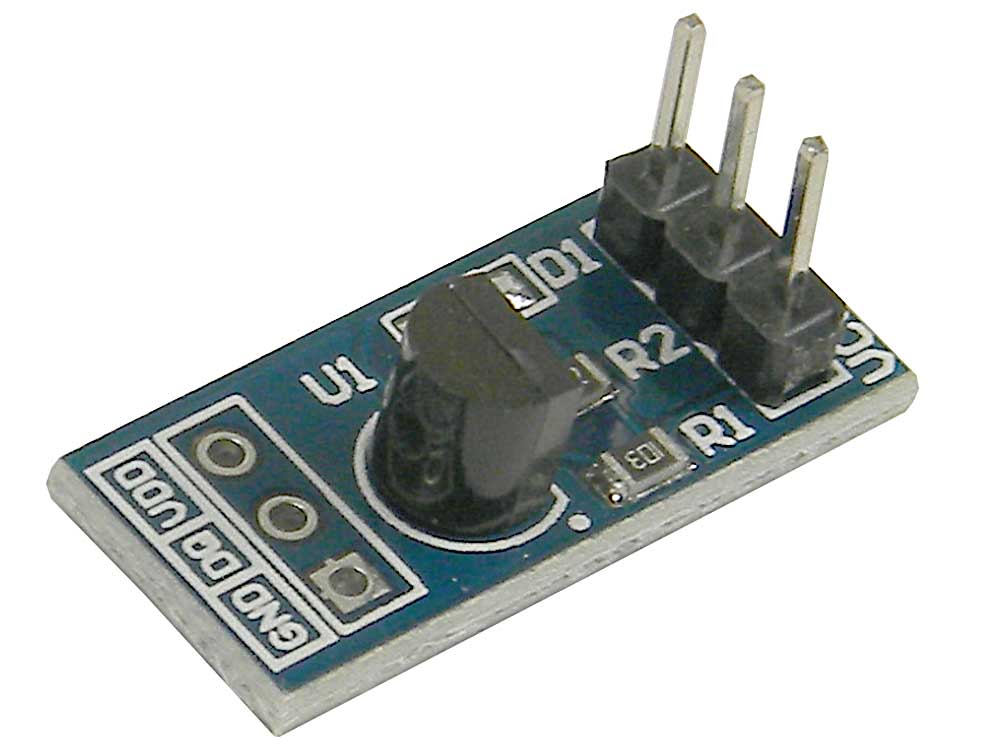

1-Wire Digital Temperature Sensor Arduino Module
The popular DS18B20 temperature sensor is loaded with features. High accuracy (+/-0.5C) over –10 to +85C range. Each device has a 64bit factory ID allowing multiple units on a single control line. User defined, programmable alarms, temperature resolution of 9 or 12bits. The sensor uses the standard “Dallas 1-Wire” serial interface. Can be connected directly to your 3.3v or 5v micro controller. Many uses in HVAC, weather monitoring, process control etc. The net is loaded with examples, code and projects. Power On LED.
Power: 3 – 5.5VDC
Current: 1mA Operational/759nA Standby
Sensor: Dallas DS18B20 T0-92,
Interface: 1 Wire SPI
Resolution: Selectable 9 or 12bits
Accuracy: +/- 0.5C @ -10 to +85C
Temp Range –55 to +125C (-67F to +257F)
4 Pin .1in. Pitch Header for Power L: 7/8” W: 13/32” T: 1/2” WT: .01
