MFG: MINEBEA
P/N: 23KM-K102-P1V
NEMA: 23
COIL: 3V/3A/1ohm/2.2mH
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE: 1.8 deg

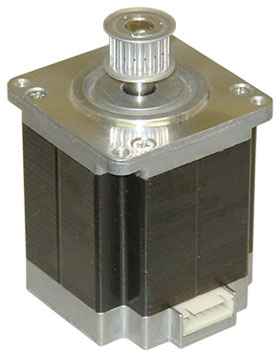

8mm dia. X 18mm steel shaft with a pressfit 13/16” dia. 18 tooth, aluminum cog belt gear. Ball bearings, 6pin connector Mating cable supplied, 4 corner mounting holes threaded M4.5.
L: 2-5/8"(Body) SQ: 2-3/16" WT: 1.9
