MFG: SHINANO KENSHI
P/N: STP-42D0003
NEMA: 17
COIL: 3.8ohm/4.8mH
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE:1.8 deg

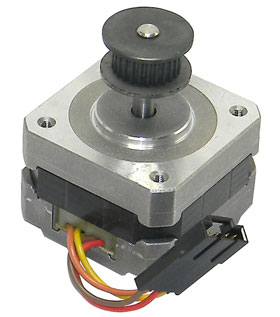

Custom motor with a 5mm dia. X 7/8” steel shaft with a 13/16” dia., 25 tooth, press fit metal cog belt gear. Ball bearings, 3" leads and four M3-.5 mm corner mounting holes.
L: 1-3/16"(Body) SQ: 1-5/8" WT: .4
