TWITTER SPECIAL!!!
Sale ends Wednesday 9-29-10
12 P.M. EST While supplies last!
Limit 5 per customer.

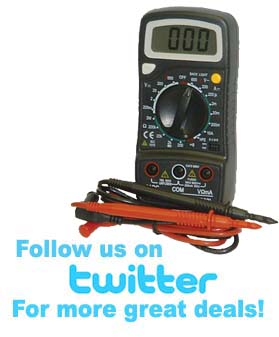

3-1/2 digit, 15mm (.6") char. Ht. LCD digital multimeter. Features HOLD Button, backlight button (~5sec. on). With 9V battery, test leads & instructions. Fuse & Diode protected (not 10A range). Yellow protective Boot. CE listed. Cat 2 use. Not Auto Turnoff
SPECIFICATIONS
DC VOLTS & CURRENT
Ranges: Volts: 200mV,2,20,200,600
Current: 200uA,2,20,200mA, 10A
Accuracy: .8% + 2 LS digit Volts
1.5% + 2 LS digit (3% 10A) Current
Overload: 250V on 200mV 600V (Max. DC + Pk. AC)
AC VOLTS 40-400Hz. Ave. Responding
Calibrated in RMS Sine Wave
Ranges: Volts: 200,600V
Accuracy: 1.2% + 10 LS digit
600V RMS/DC Max
RESISTANCE
Ranges: 200,2K,20K,200K,2M
Accuracy: 1% + 2 LS Digit
3.2V Max. Open Circuit
250V DC/RMS Max
DIODE & TRANSISTOR TEST
Diode: Displays forward drop
hfe: : 0-1000 Ib =10ua/Vce=3V
CONTUNITY BUZZER
