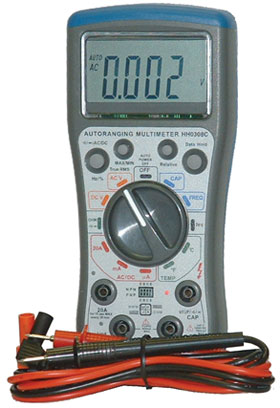

Quality 3-7/8 digit (5999 count) DMM with .8" char. ht. LCD display. Autoranging with Max/Min, Data Hold, AC & DC voltage/Current, frequency to 600KHz, Capacitance, Resistance to 60M Ohm, Fused input. Includes Test leads.
DC VOLTS 6V to 1KV, Accuracy .3% +3 LS digit/.8%+4 on 1KV. Impedance 10 Mohm
DC CURRENT 600uA to 20A, Accuracy .8% + 5 LS digit/1.2% +5 on 10A. Overload .8A Fuse on uA,mA
20A: 15sec/30min off. Fused @ 15A
AC VOLTS 6V to 750V, Accuracy 1% +8 LS digit, Impedance10M ohm, Overload 750VRMS
AC CURRENT 600uA to 20A, Accuracy 1.2% + 8LS digit 2% +8 on 10A,
20A: 15sec/30min off. Fused @ 15A
CAPACITANCE 60nF to 100uF, Accuracy 10% + 25 LS digit, 2.5% +10 on 100uF,
RESISTANCE 600 to 60M Ohm, Accuracy .5% + 5LS digit, 2% + 10 on 60M Ohm.
FREQUENCY 11Hz-600KHz, Accuracy .2% + 3 LS digit,
OTHER Continunity buzzer <40Ohm,
Diode/Transistor tests T: 7-3/8" W: 3-5/8" D: 1-3/4" WT: .8
