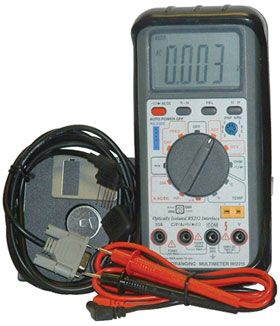

Quality 3-3/4 digit (4000 count) DMM with 1" char. ht. Connects to your PC port & software provides data capture, tracking & printing. Autoranging or manual, Data Hold, AC & DC voltage/Current, frequency to30KHz, Capacitance, Resistance, 40M Ohm, Fused input. Includes Test leads, Black Boot, RS232 cable & Software.
Requires: Pent. 90MHz or better, Win95 above, 16M RAM, 20M Hard drive space, Floppy Drive. Batteries not Included
DC VOLTS 4V to 1KV, Accuracy .5% +3 LS digit (0.8%+3 on 1000), Impedance 10 Mohm
DC CURRENT 400uA to 20A, Accuracy 1.2% + 5 LS digit, Overload .8A Fuse on uA,mA/20A
20A: 30sec on/15min off. Fused @ 20A
AC VOLTS .4V to 750V, Accuracy 0.8% +8 LS digit, Impedance10M ohm, Overload 750VRMS
AC CURRENT 400uA to 20A, Accuracy 1.2% + 10LS digit (3%+5 on 20A), Overload fuse.
20A: 30sec on/15min off. Fused @ 20A
CAPACITANCE 4nF to 40uF, Accuracy 5% + 25 LS digit (2% 40uF), Test Voltage .45V, Overload 1000Vp
RESISTANCE 400 to 40M Ohm, Accuracy 1.5% + 5LS digit, (5% 40M Ohm)
FREQUENCY 10Hz-300KHz, Accuracy .5% + 3 LS digit,
OTHER Continunity buzzer <20Ohm,
Diode/Transistor: 2.8V Test
Transistor HFE @ 10uA
T: 7" W: 3-1/4" D: b1-1/2" WT: 1.3
