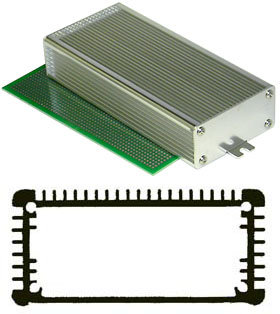

ALUMINUM CASE & INTERNAL PC BOARD
CASE
Extruded aluminum case with mounting flanges on end plates. Natural Aluminum finish on case and end plates. Slots for PC Board on inside. Groved outside with smooth end plates.
L: 6" I/D W: 2.4" I/D H: 0.9" WT: .52
PROTOBOARD
Double Sided .062" FR-4 Epoxy-glass board
20 X 57 Pads on .1" spacing. .032in. plated through holes
L: 6" W: 2-3/8" WT: .06
